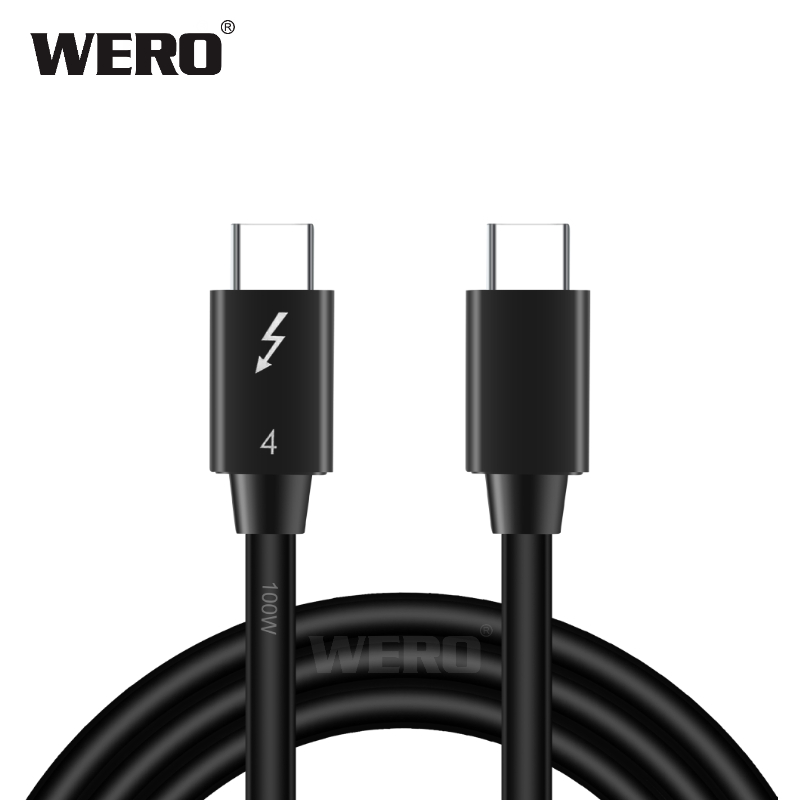

| 產品內容
Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission.
Supports 1-CH USB3.2 Gen1 or Gen2 or supports 2- CH USB3.2 Gen2 full duplex high speed transmission.
Supports USB4 Gen2/Gen3 full duplex high speed transmission.
Supports 1-CH USB2.0 half duplex transmission.
Support DP1.4, 4-lane DisplayPort video signal transmission, DP alternate mode.
Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy-chaining devices.
Triple -protocol support for USB4 mode (USB, PCI Express and DisplayPort*) and can be used for USB4 daisy-chaining devices.
Plug flip-able use
Thin cable design, OD=4.8mm
Compliant with USB Power Delivery Specification Rev3.0. Maximum power delivery capacity up to 5A
| 產品規格
General Specification
Length: 0.5-meter / 0.7-meter / 0.8-meter
Connector: LOTES Type-C connector or compatible
Color: Black
Electrical Specification
Transmission data rate:
Thunderbolt: 2-channel Thunderbolt Gen2 or Thunderbolt Gen3 full duplex operation.
DP: DP1.4, 4-lane DisplayPort video signal transmission, DP alternate mode (MFDP).
USB: 1-CH USB3.2 Gen1 or Gen2 full duplex operation.
2-CH USB3.2Gen2 full duplex operation.
USB4 Gen2/Gne3 full duplex operation.
1-CH USB2.0 half duplex operation.
Operating Voltages: VBUS: 5V ~ 20V (typ.), VCONN: 5.5V (max) ~ 3.0V (min.)
Power consumption: under 37.5mW.
Current delivery capacity: 5A (max.)
Compliant with USB Power Delivery Specification Rev3.0
Storage and Operation temperature
Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.
