FEATURES

Supports TBT Gen3, Gen4 or Gen5 full duplex high speed transmission.
Supports USB4 Gen2/Gen3/Gen4 full duplex high speed transmission.
Supports 1-CH USB3.2 Gen1 or Gen2 or supports 2- CH USB3.2 Gen2 full duplex high speed transmission.
Supports 1-CH USB2.0 half duplex transmission.
Support DP2.1, 4-lane DisplayPort video signal transmission, DP alternate mode.Dual-protocol support for TBT mode (PCIExpress and DisplayPort) and can be used for daisy-chaining devices.
Triple -protocol support for USB4 mode (USB,PCI Express and DisplayPort*) and can be used for USB4 daisy-chaining devices.
Plug flip-able use

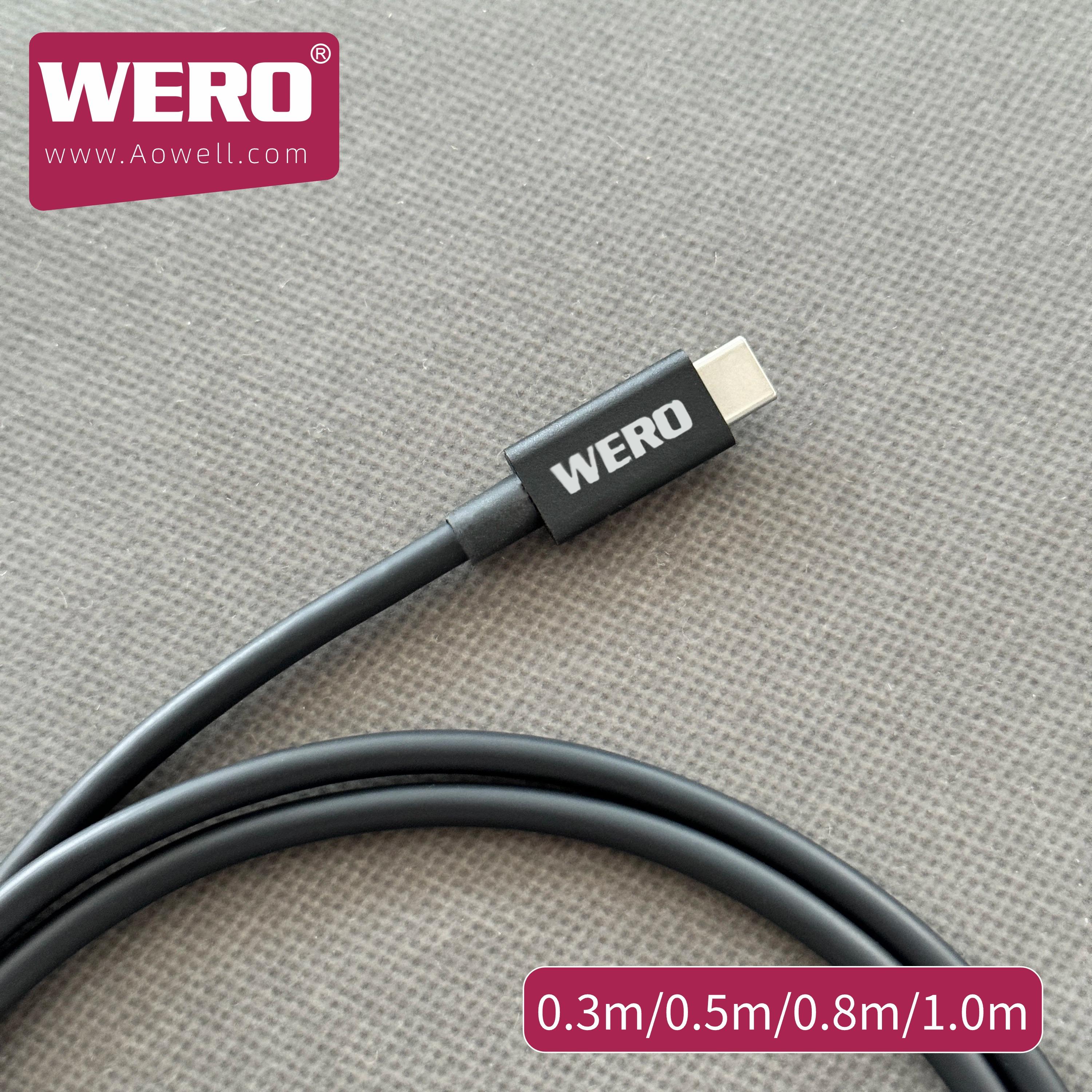

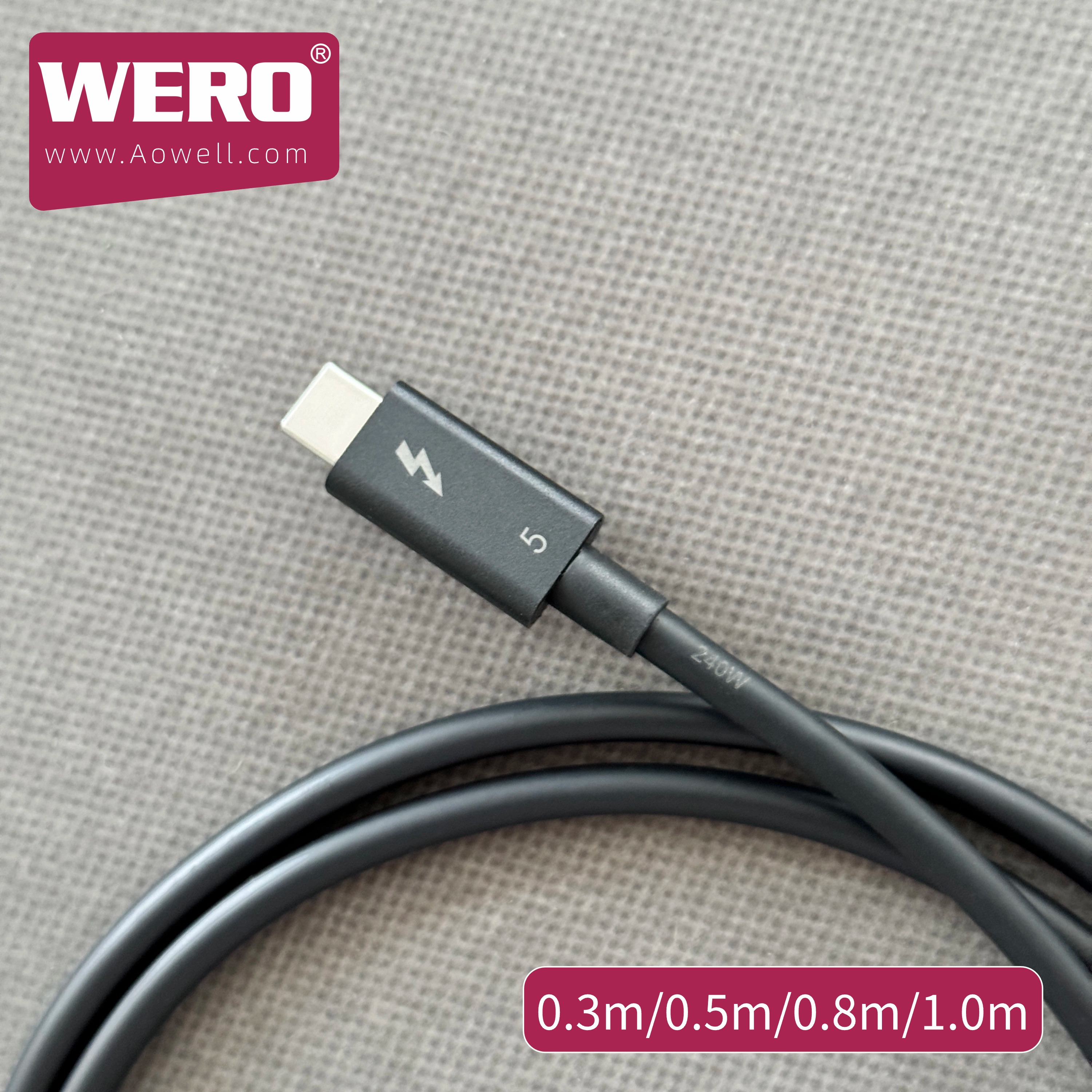

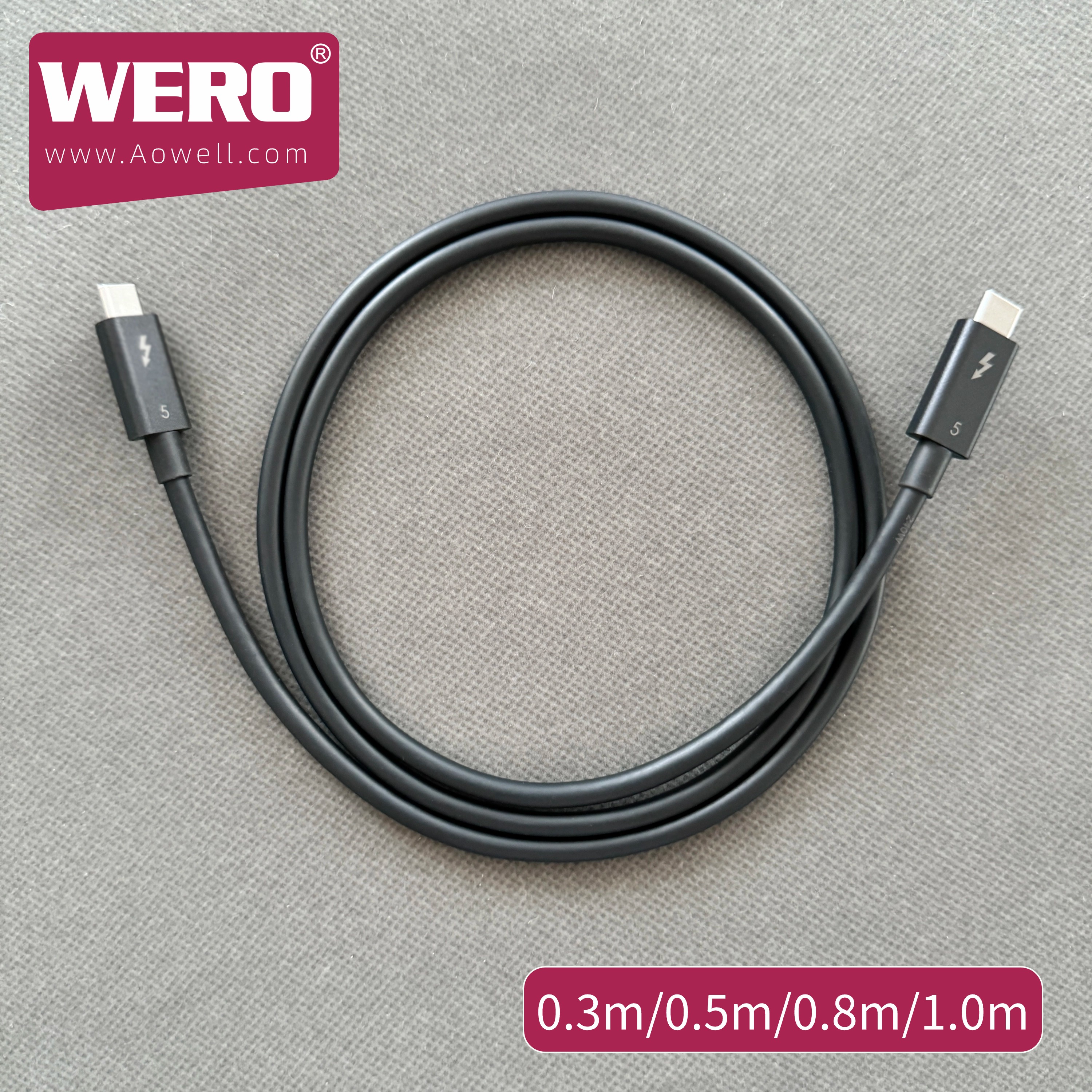

Thin cable design, OD=4.7mm
Compliant with USB Power Delivery Specification Rev3.1 Maximum power delivery capacity up to 5A
OVERVIEW

New Thunderbolt 5 Passive Cable provides a robust solution designed to meet the performance, power delivery, and quality required of certified Thunderbolt. Fully interoperable with Thunderbolt 5 PCs and Devices, Thunderbolt 5 will deliver 80Gbps of bi- directional bandwidth, and with Bandwidth Boost it will provide up to 120Gbps for the best display experience.

功能特性

支持TBT Gen3、Gen4或Gen5全双工高速传输。
支持USB4 Gen2/Gen3/Gen4全双工高速传输。
支持1通道USB3.2 Gen1或Gen2，或支持2通道USB3.2 Gen2全双工高速传输。
支持1通道USB2.0半双工传输。
支持DP2.1，4通道DisplayPort视频信号传输，DP替代模式。
TBT模式（PCI Express和DisplayPort）支持双协议，可用于菊花链设备。
USB4模式（USB、PCI Express和DisplayPort*）支持三协议，可用于USB4菊花链设备。
插头可翻转使用。
线缆设计纤薄，OD=4.7mm。
符合USB Power Delivery Specification Rev3.1，最大供电能力高达5A。
概述

新款Thunderbolt 5无源线缆提供了一种坚固的解决方案，旨在满足经认证的Thunderbolt所需的性能、供电和质量要求。该线缆与Thunderbolt 5 PC和设备完全兼容，Thunderbolt 5将提供80Gbps双向带宽，通过Bandwidth Boost技术，可提供高达120Gbps的带宽，从而带来最佳的显示体验。
