1.Introduce

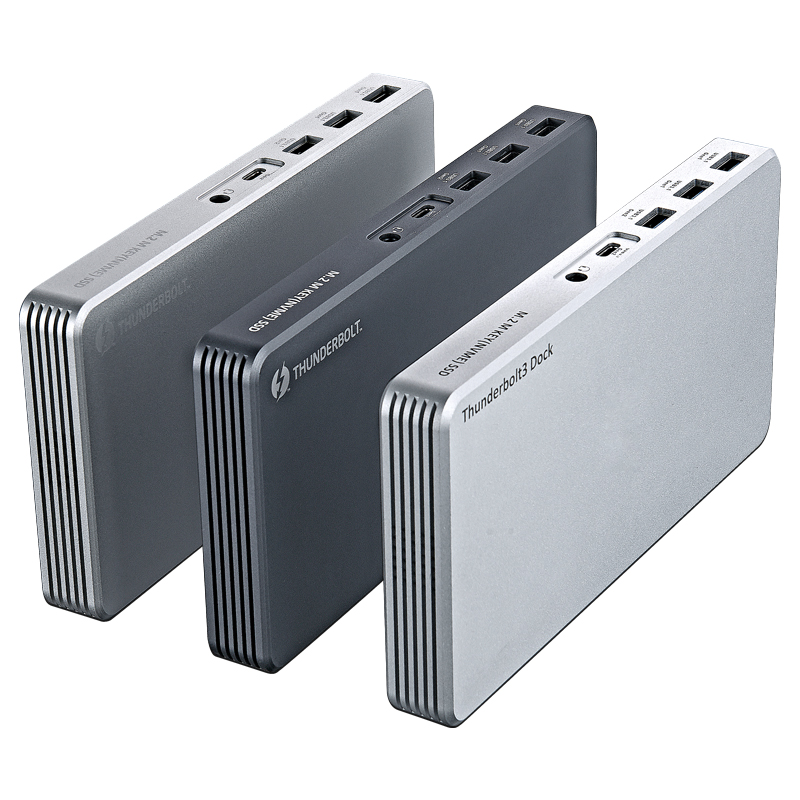

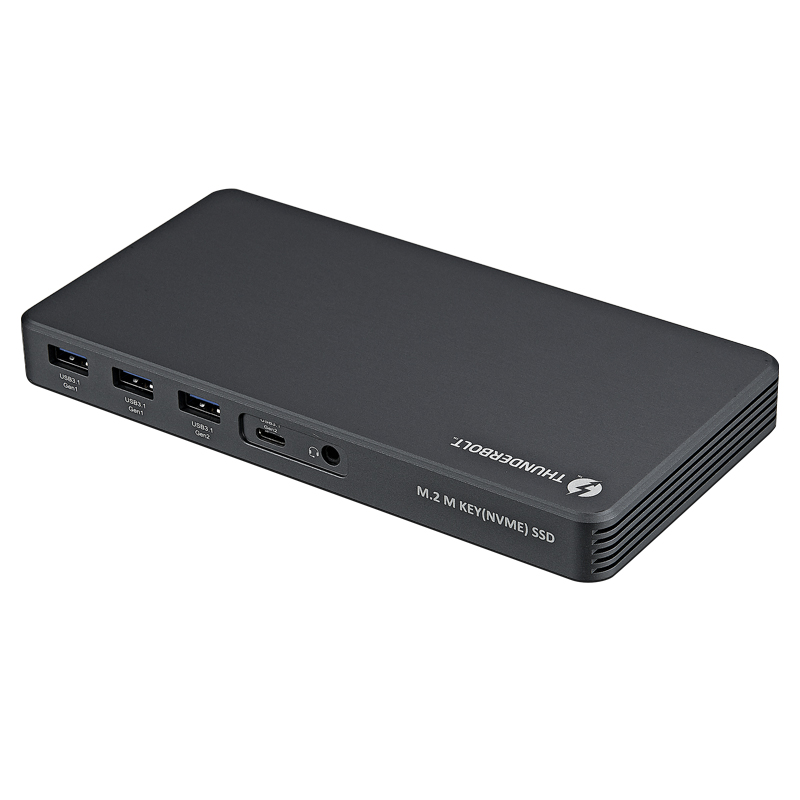

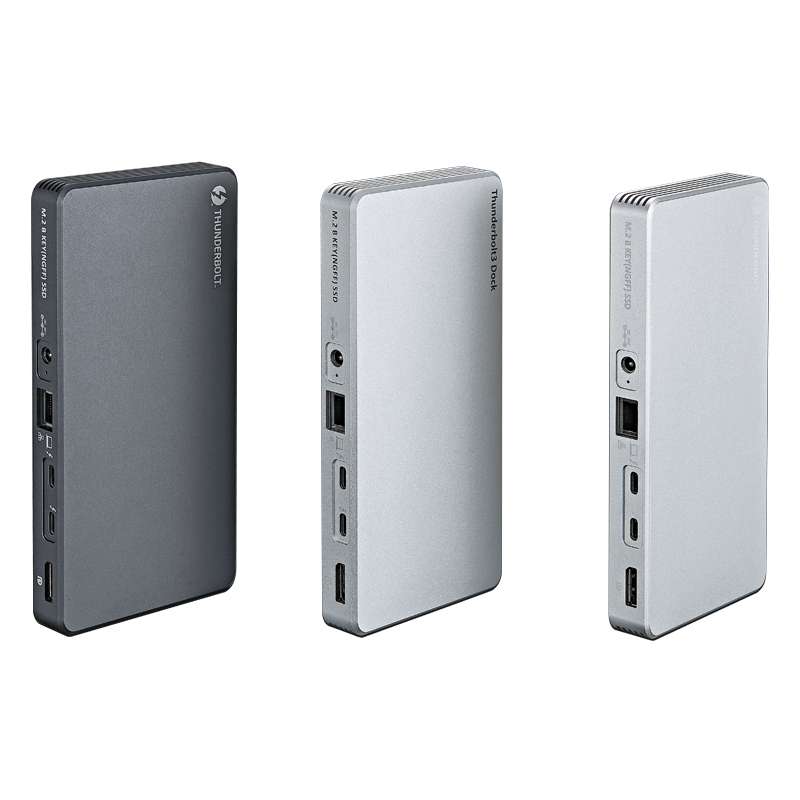

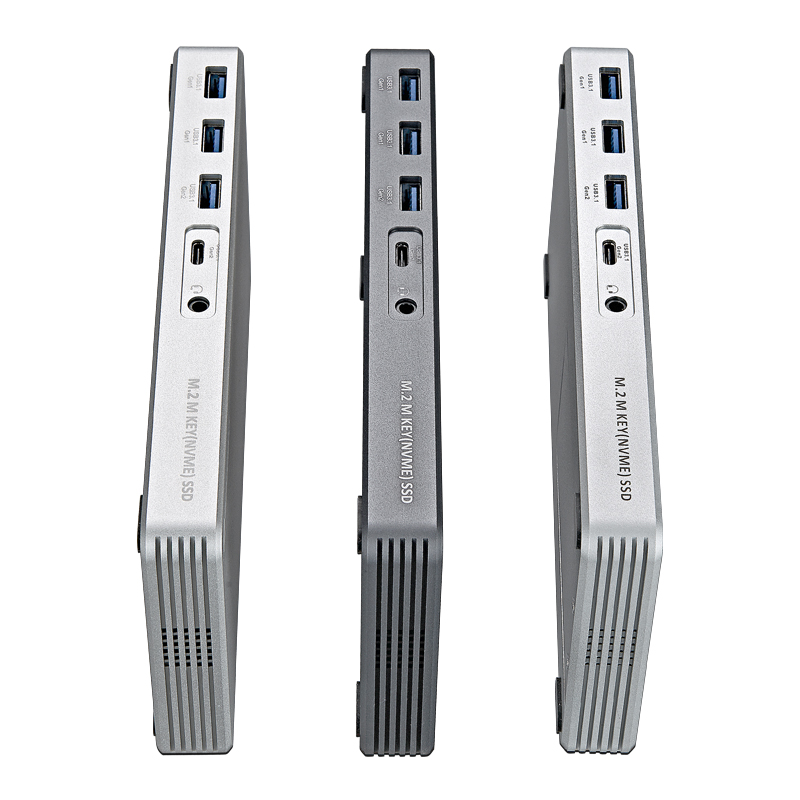

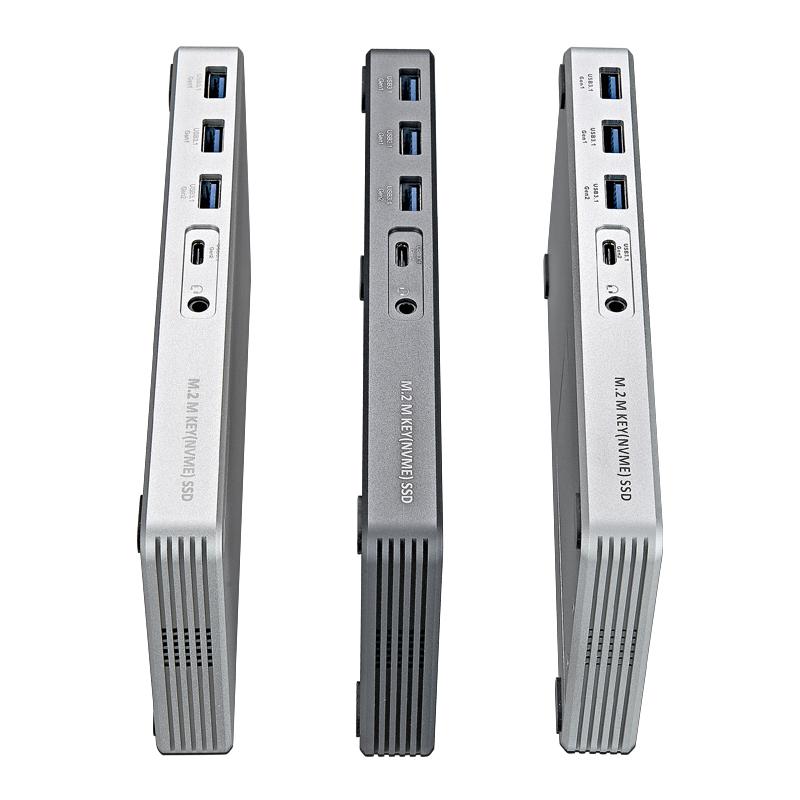

Thunderbolt3 Docking Station

2.Specification

Interface

A. Thunderbolt 3 40Gbps x 2

B. Display Port 1.4 x 1

C. USB3.1 Gen 2 10Gbps Type A x 1

D. USB3.1 Gen 1 5Gbps Type A x 2

E. USB3.1 Gen 2 10Gbps Type C x 1

F. 10/100/1000M Ethernet x 1

G. Headset/MIC Combo Jack x 1

H. 20V/6A DC IN x 1

3. Features

A. Intel Titan Ridge Universal docksupport both Thunderbolt Host and MFDP host PC

or Notebook.(Intel Alpine Ridge is old version, only support Thunderbolt3 host PC

or Notebook)

B. Supports 2x thunderbolt3 40Gbps and Thunderbolt3 daisy chain.

C. Supports single 8K@60Hz(7680x4320),5K@60Hz (5120x2880) UHD or dual

4K@60Hz display output.

D. Thunderbolt Port A support PD 60W charging(5V/9V/15V/20V @3A).

E. Thunderbolt Port B support PD 15W charging(5V@3A)；Supporting 40Gbps/S High Speed Data Transmission。

F. USB3.1 Gen 2 Type A supports 1000MB/S and 5V@1.5A.

G. USB3.1 Gen 1 Type A supports 500MB/S and 5V@1.5A.

H. USB3.1 Gen 2 Type C supports 1000MB/S and 5V@3A.

I. Supporting built-in M.2 B KEY( NGFF) protocol with maximum 2T SSD hard disk 6Gbps/S

J. Supporting built-in M.2 M KEY(NVME) protocol with maximum 2T SSD hard disk 10Gbps/S

4. Block Diagram

5. Operating System Support

A. Mac OS X 10.12 and future releases.

B. Windows 8/10 32 and 64 bit and future releases.

6. Power &Accessories

A. Power Supply: External universal Power(120W/ 20V@6A) x1.

B. Including Thunderbolt3 cable 0.7m.

C. User manual x1.

D. Retail Color Box x1.
