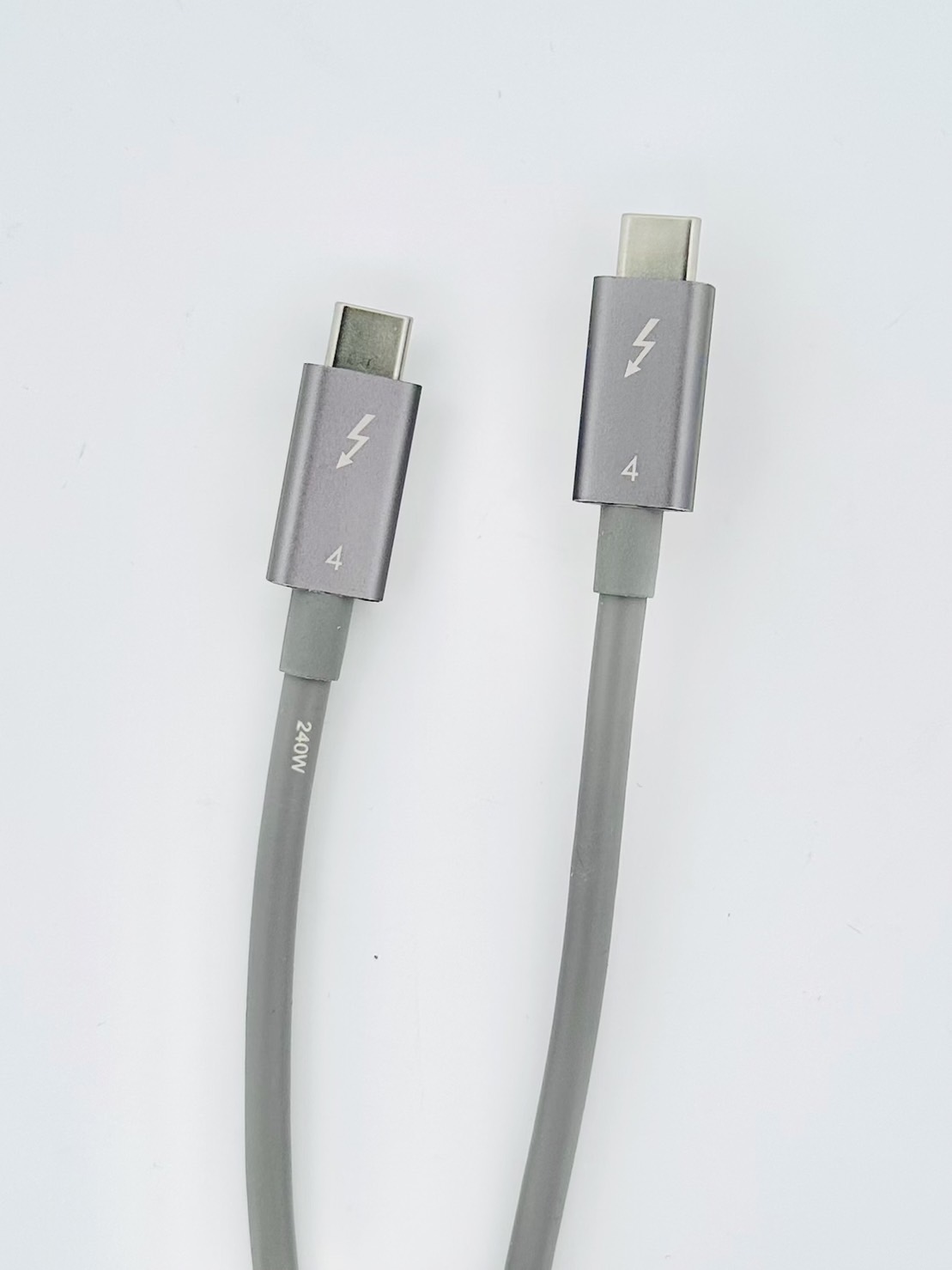

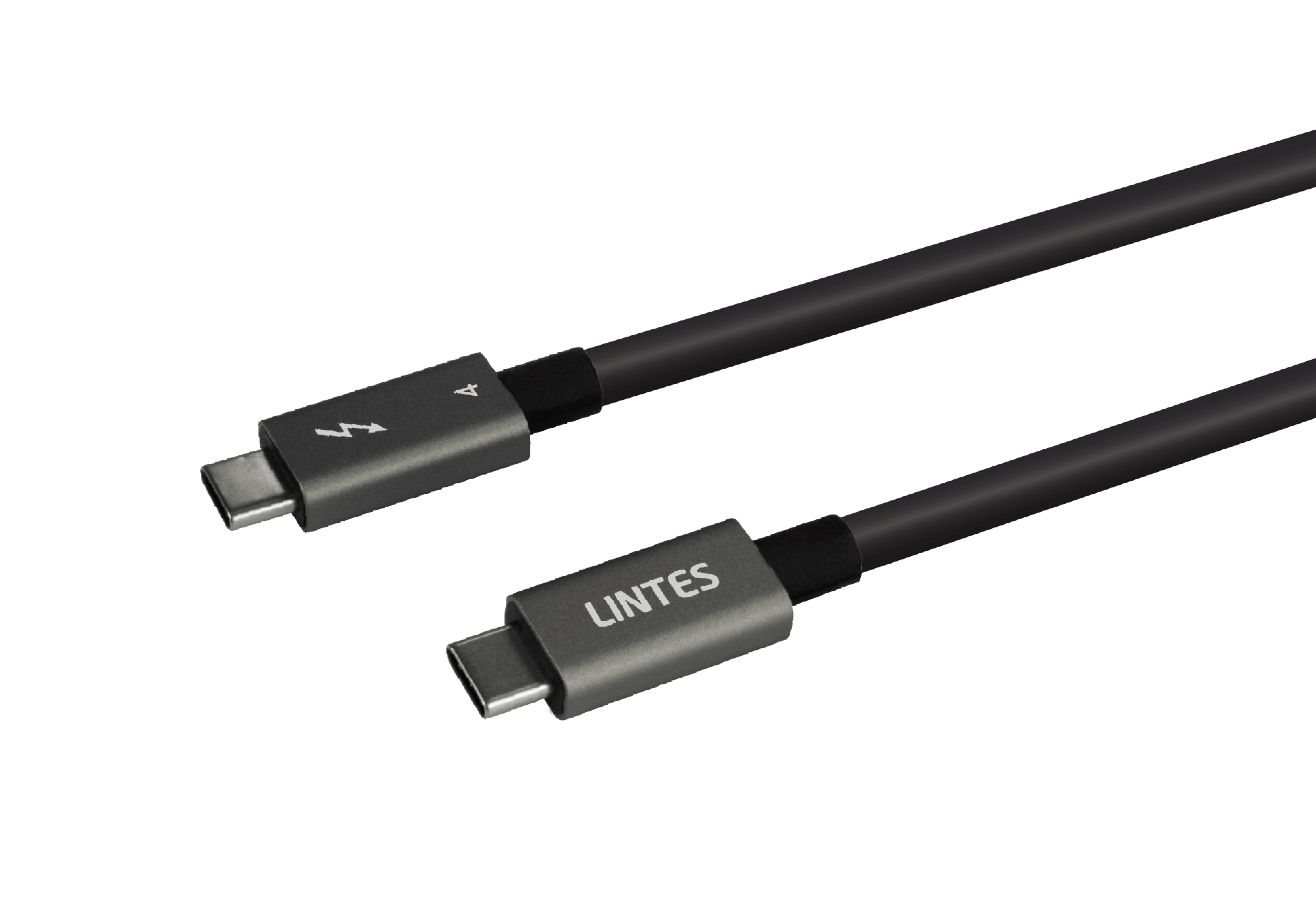

Thunderbolt 4 (40Gbps) Passive Cable 0.5M, 0.7M, 0.8M, 1.0M - Aluminum Housing

  • Category: Cable
Lintes Technology Co., Ltd.
Operating System:
MacOS
Operating System:
Windows
Operating System:
Chrome OS
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
1
Thunderbolt Version:
Thunderbolt 4

Content
◆ Supports 2-CH TBT Gen2 or TBT Gen3 full duplex high speed transmission.
◆ Supports 1-CH USB3.2 Gen1 or Gen2 or supports 2- CH USB3.2 Gen2 full duplex high speed transmission.
◆ Supports USB4 Gen2/Gen3 full duplex high speed transmission.
◆ Supports 1-CH USB2.0 half duplex transmission.
◆ Support DP1.4, 4-lane DisplayPort video signal transmission, DP alternate mode.
◆ Dual-protocol support for TBT mode (PCI Express and DisplayPort) and can be used for daisy-chaining devices.
◆ Triple -protocol support for USB4 mode (USB, PCI Express and DisplayPort*) and can be used for USB4 daisy-chaining devices.
◆ Plug flip-able use
◆ Thin cable design, OD=4.8mm
◆ Compliant with USB Power Delivery Specification Rev3.0. Maximum power delivery capacity up to 5A

General Specification
◆ Length: 0.5-meter / 0.7-meter / 0.8-meter / 1.0-meter
◆ Connector: LOTES Type-C connector or compatible
◆ Color: Black, White

Electrical Specification
◆ Transmission data rate:
-Thunderbolt: 2-channel Thunderbolt Gen2 or Thunderbolt Gen3 full duplex operation.
-DP: DP1.4, 4-lane DisplayPort video signal transmission, DP alternate mode (MFDP).
-USB: 1-CH USB3.2 Gen1 or Gen2 full duplex operation.
-2-CH USB3.2Gen2 full duplex operation.
-USB4 Gen2/Gne3 full duplex operation.
-1-CH USB2.0 half duplex operation.
◆ Operating Voltages: VBUS: 5V ~ 20V (typ.), VCONN: 5.5V (max) ~ 3.0V (min.)
◆ Power consumption: under 37.5mW.
◆ Current delivery capacity: 5A (max.)
◆ Compliant with USB Power Delivery Specification Rev3.0

Storage and Operation temperature
◆ Storage Temperature: Intel Thunderbolt Standard -20~85°C ambient.
◆ Operation Temperature: Intel Thunderbolt Standard 0~50°C ambient.
