Thunderbolt 3 Expansion Docking

  • Category: Adapter/Expansion, Dock
Wieson Technologies Co.,LTD
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
2
Thunderbolt Version:
Thunderbolt 3

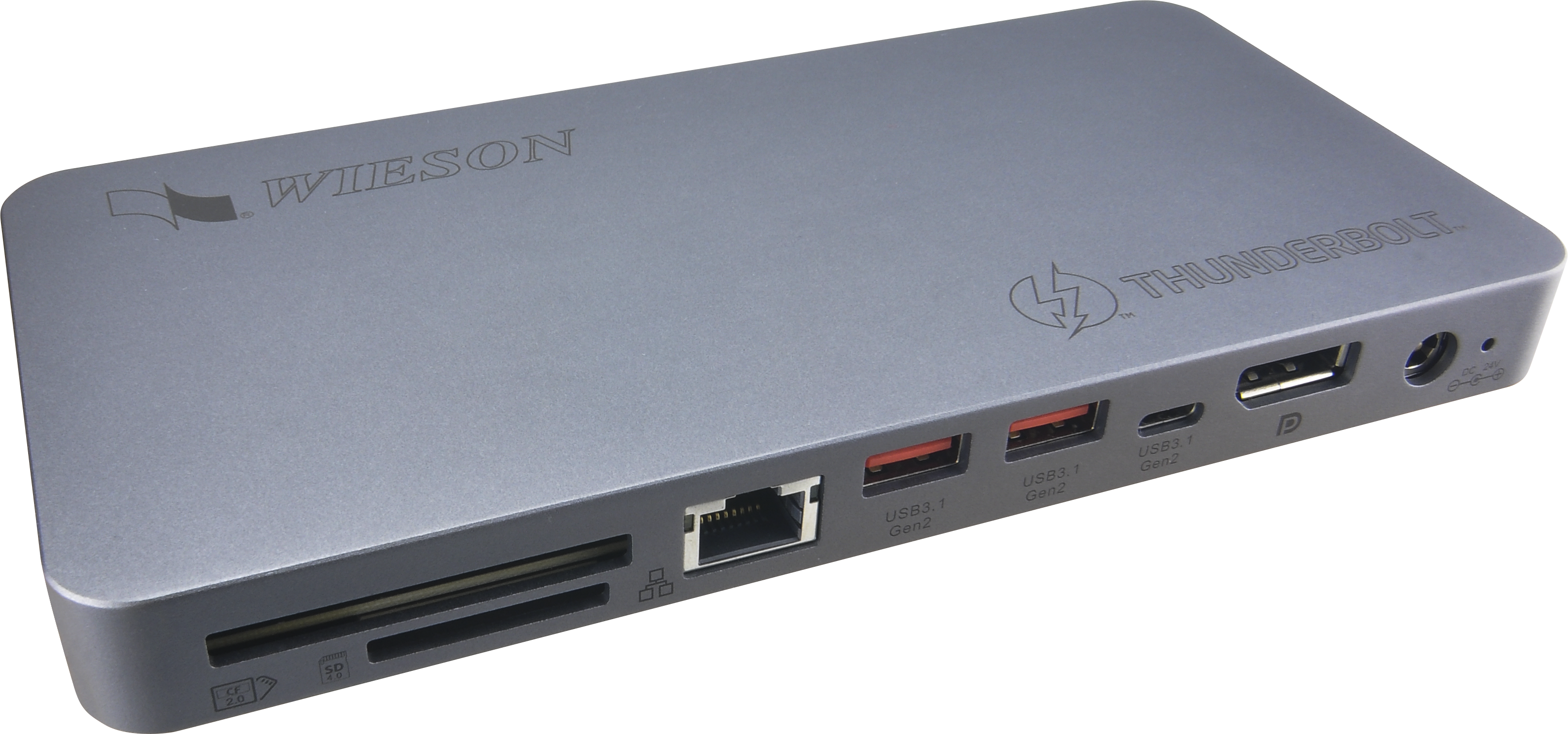

WIESON Thunderbolt™ 3 Expansion Docking (G9999-0000-001-00)

40Gb/s of data traffic can be obtained by connecting Thunderbolt™ 3 dock to the Thunderbolt™ 3 interface of computer.
Thunderbolt 3 Docking can provide one ultra high definition video display (8K@60Hz) or two high definition video signal transmission(4K@60Hz) at same time, we also provide different I/O port for data transmission(USB A、USB C、SD card、CF card、RJ45), compatible with USB4 / Thunderbolt 3 laptops and PC computer, supports the computer‘s picture, video, sound and other content on the TV, projector and other display devices.

【Features】
■ Thunderbolt™ 3 Port A (PD 60W)
■ Thunderbolt™ 3 Port B (PD 15W)
■ Thunderbolt™ 3 Titan Ridge Technology
■ PD Charging Technology Support 15W\27W\45W\60W charging
■ Allows user to connect as many as 6 Thunderbolt™ 3 devices, daisy chained.
■ USB3.2 Gen 2 Type A x2 :Support data transmission up to 10Gb/s
■ USB3.2 Gen 2 10G Type C x1:Support data transmission up to 10Gb/s
■ DisplayPort : Support DP1.4 8K@60Hz resolution
■ LAN connect:Support 10Mbps/100Mbps/1000Mbps
■ SD Card Reader:SD4.0(UHS-II) Support data transmission up to 300 Mbps
■ CF Card Reader:CFast 2.0 Support data transmission up to 500 Mbps

【Applications】
■ MacBook/Notebook
■ HUB/ Docking
■ Memory Card(CF2.0/ SD4.0)
■ Camera
■ Key Board
■ Audio/Video
■ Speaker
■ Mouse
■ Hard Disk
■ Monitor Display
