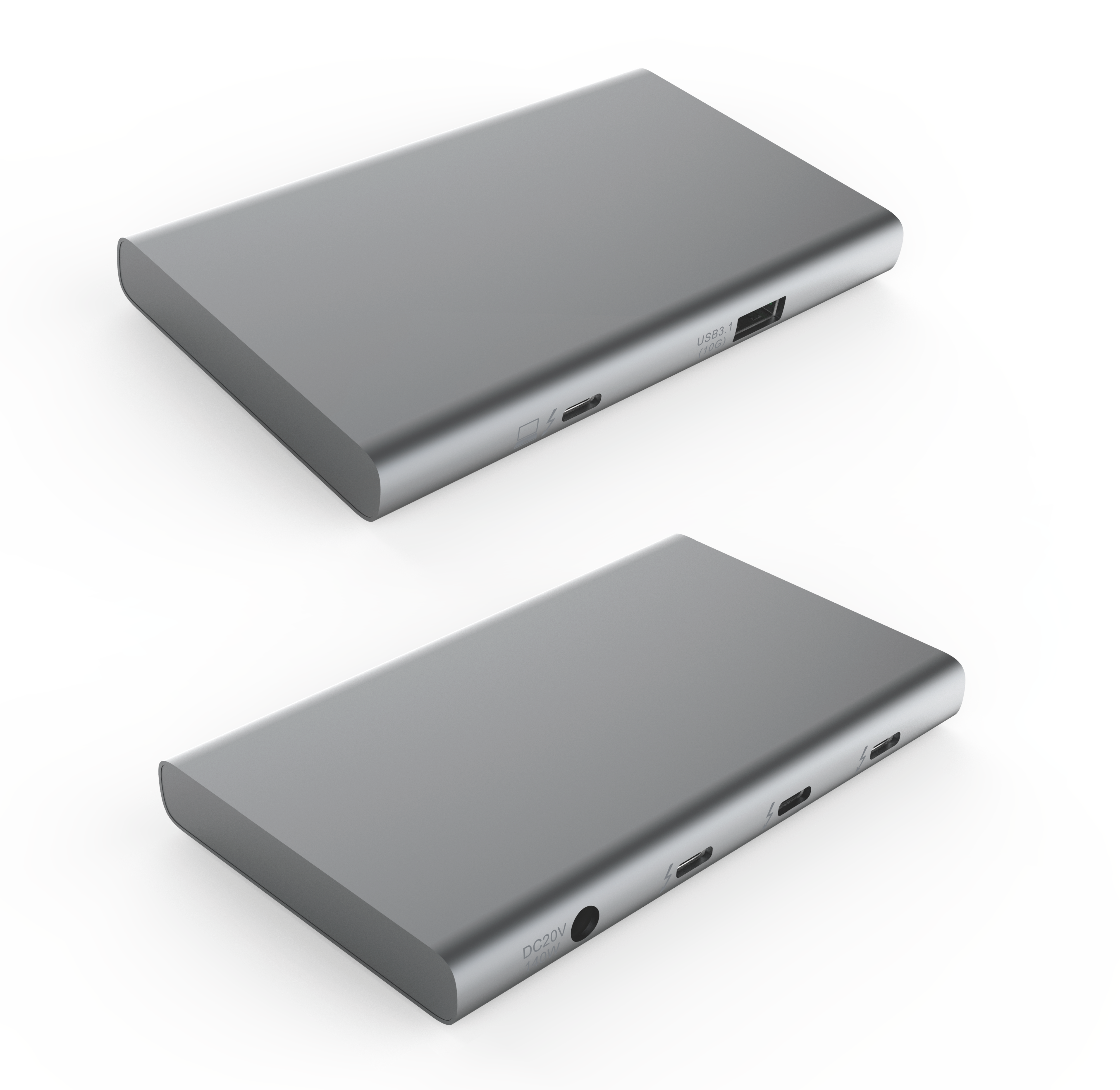

Thunderbolt™ 4 Portable Hub with Smart Power (Model: TB4-HUB01)

  • Category: Dock
CE-LINK
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
4
Thunderbolt Version:
Thunderbolt 4

Product Description:
This is a Thunderbolt™ certified Thunderbolt™ 4 portable Hub which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. For the first time this Thunderbolt™ 4 modern Hub has 3 Thunderbolt 4 downstream ports that allow you to cascade Thunderbolt devices up to 6 levels, to one 8K or two 4K 60Hz monitors, it can also easily connect to any USB Type-C device, all while simultaneously charging the PC. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions.

Features:
Input: Thunderbolt™ 4 Receptacle x1(to host)
Output:
Thunderbolt™ 4 Receptacle x3
USB3.2 Type-A Gen2 x1
Power Jack x1

Adopting Goshen Ridge solution;
Slim compact aluminium design;
Designed for Thunderbolt 4 based PCs and Thunderbolt 3 based Macs utilizing MacOS 11 and later versions;
Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP Alt mode,USB protocol;
3 Thunderbolt 4 downstream ports allow to allow you to cascade Thunderbolt devices up to 6 levels;
3 Thunderbolt 4 downstream ports support max 40Gbps data transfer, support Type-C dongle/adapter/dock, not support PD power adapter;
3 Thunderbolt 4 downstream ports support max 8K for one video output, be more efficient for dual 4K/60Hz;
Self-powered from DC power adapter with max 60W for host, max 85W for host and Hub;
Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices, so as to take full advantage of provided power from the external DC power adapter: more power will be dedicated for charging host if the downstream ports of the Hub consume few power; once the power consumption of the Hub and the connected device increases, the power dedicating for charging host will decrease accordingly.
Compatibility Details:
Windows 10 or above version supported Thunderbolt 4 host
Mac OS 11 or above version supported Thunderbolt 3 host

Operation Temperature: 0℃ to +45℃
Storage Temperature: 0℃ to +70℃
Size: 124*74*13(mm)
Weight: 164.7g
