Blazing-Fast 10GBASE-T Connectivity Over Thunderbolt™ 3 for Mac® and Windows®
Increased demand for greater data transfer speeds and more bandwidth over shared networks, plus the need for HD video editing support on high-performance shared storage systems has driven the explosion in demand for 10 Gigabit Ethernet (10GbE) networking—offering ten times the performance of Gigabit Ethernet, the most common wired network connection today. It’s no wonder. And yet, most computers aren’t equipped to get you connected. If your computer has a Thunderbolt 3 port, you are in luck—Sonnet’s Twin10G™ Thunderbolt 3 Edition dual-port 10 Gigabit Ethernet adapter is the powerfully simple and cost effective solution for adding blazing-fast 10GBASE-T 10GbE network connectivity to any Mac or Windows computer with Thunderbolt 3 (USB-C) ports.

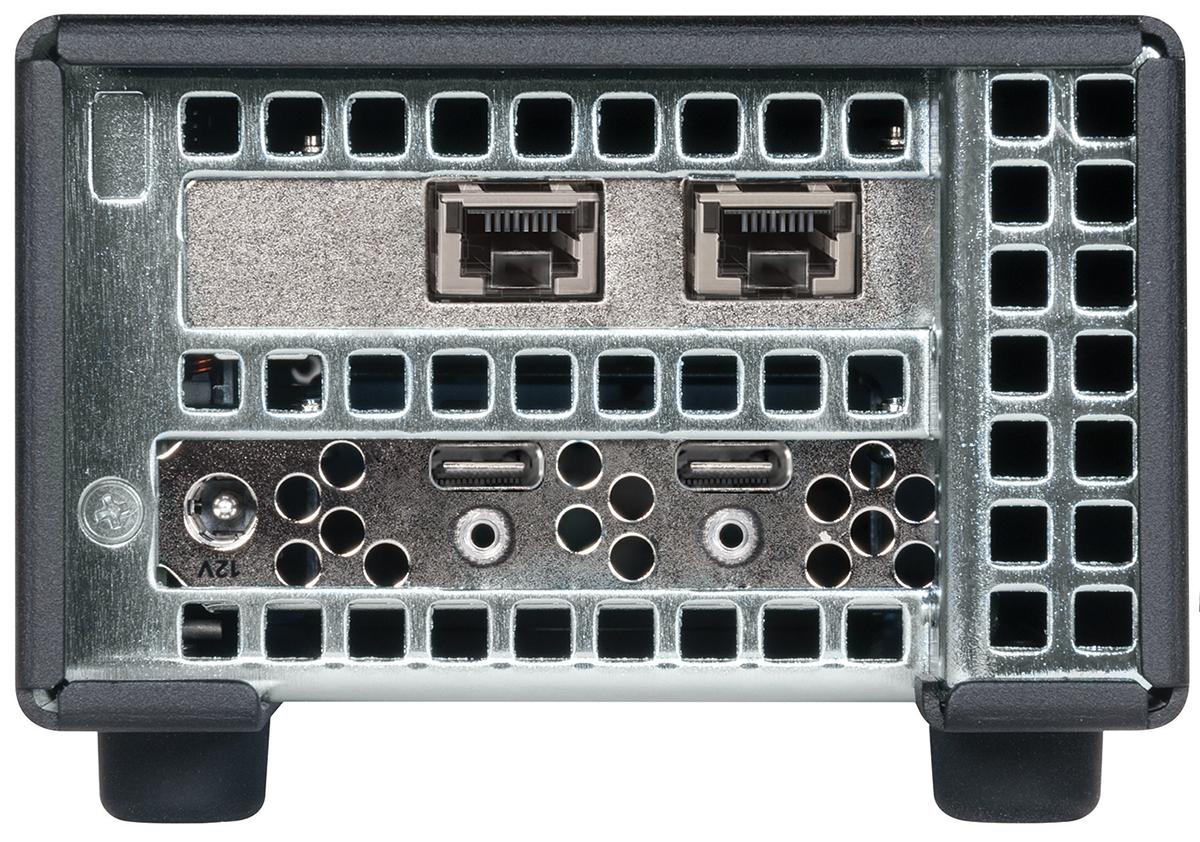

The Twin10G Thunderbolt 3 Edition adapter is equipped with two RJ45 ports, enabling it to connect to 10GbE infrastructure via inexpensive CAT-6 or CAT-6A copper cabling at distances up to 55 or 100 meters, respectively. It attains its high throughput performance and low host-CPU utilization through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place. This Sonnet adapter’s dual 10GbE connections support transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and also support link aggregation for increased throughput!
Thunderbolt 3 — The USB-C That Does It All
The Twin10G Thunderbolt 3 Edition adapter includes two Thunderbolt 3 (USB-C) ports; the first connects the adapter to your computer, while the second supports daisy-chaining of up to five additional Thunderbolt peripheral devices to a single port on your computer. The Sonnet adapter includes 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter. The Twin10G also provides full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz. For connected devices requiring extra power, 15 watts is provided to connected bus-powered devices.
