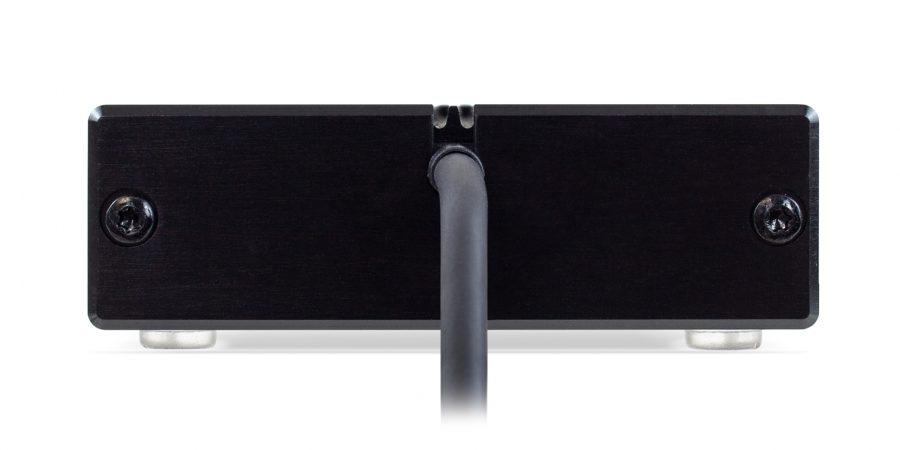

THUNDERBOLT 3 10G ETHERNET ADAPTER
Plug into hyper speed. Get big jobs done.
When the content you create demands security, greater bandwidth and higher transfer speeds, plug into hyper-fast networks with the OWC Thunderbolt 3 10G Ethernet Adapter.

STANDS UP TO THE NEW DATA TRANSFER STANDARD
Bandwidth-intensive workflows are the norm for today’s content creators and post-production shared storage workgroups. You can feel confident that your 10G Ethernet adapter from OWC will work for you today and into the future.

FASTER THAN GIGABIT ETHERNET
Securely and cost-effectively connect your Thunderbolt 3 equipped Mac or Windows PC to high-performance wired networks delivering up to 10 times the performance of Gigabit Ethernet. Ideal for professional video applications where frame-accurate access is critical.

WORKS WITH PREVIOUS GENERATION NETWORKS, TOO
Connect to any wired network via the RJ45 port. Works with macOS 10.13.4 or later and Windows 10 (64-bit edition).

Key features:
Connects to any Thunderbolt 3 port
Blazing fast 10GBASE-T 10Gb Ethernet connectivity
Bus powered, energy efficient
Easy setup: Windows and macOS
1 Year OWC Limited Warranty

CAPTIVE, REPLACEABLE THUNDERBOLT 3 CABLE
The captive Thunderbolt 3 (up to 40Gb/s) cable is convenient, and it’s easily replaceable.*

* Approved replacement cables are available from OWC

INCLUDES
OWC Thunderbolt 3 10G Ethernet Adapter with captive Thunderbolt 3 cable
User Guide

DETAILED SPECS
System Requirements

Software
OS
macOS High Sierra (10.13.4) or later
Windows 10 (64-bit edition, version 1709 or greater)
Hardware
Any Mac or PC with a native Thunderbolt 3 port
Driver
macOS: driver not required
Windows 10: driver required*
External Connector
(1) RJ45 socket

10GbE Controller Aquantia AQC - 107S

Network Support
10GBASE-T 100 meters using CAT 6A cabling; 55 meters using CAT 6 cabling
5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-T
100 meters using CAT 5E (or better) cabling
Data Rates supported
10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s

Dimensions
Width: 3.1 in (8.0 cm)
Height: 1.1 in (2.7 cm)
Depth: 4.5 in (11.3 cm)
Length of Thunderbolt 3 Captive Cable: 19.6 in (50.0 cm)
Weight 8.6 oz (0.2 kg)

OPERATING ENVIRONMENT
Environmental (Operating)
Temperature (°F) 32°F to 95°F
Temperature (°C) 0°C to 35°C

WARRANTY
1 Year OWC Limited Warranty
