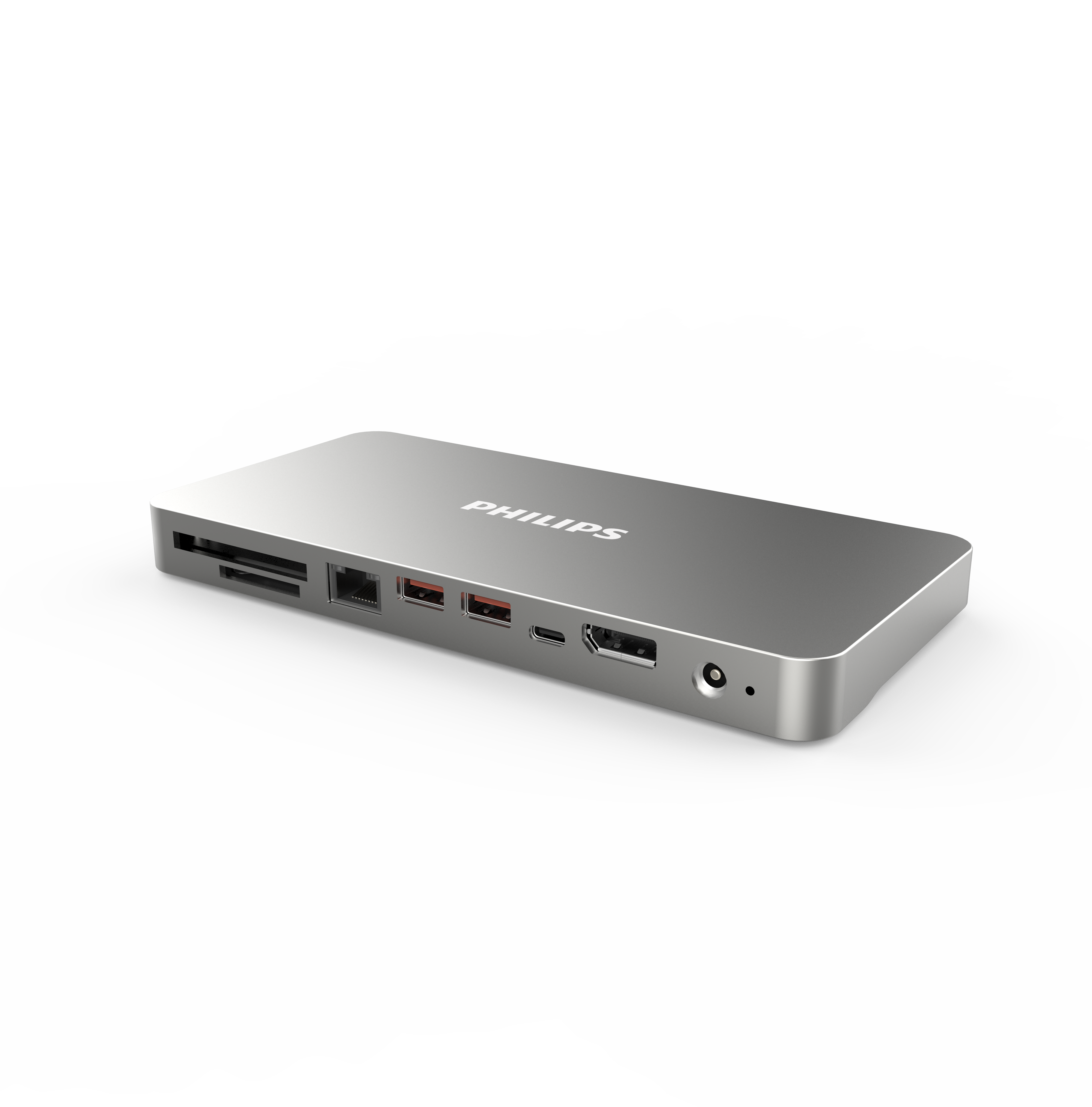

MMD Thunderbolt3 Dock

  • Category: Dock
Shenzhen DNS Industries Co.
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
2
Thunderbolt Version:
Thunderbolt 3

Interface
Thunderbolt 3 40Gbps x 2
Display Port 1.4 x 1
USB3.1 Gen 2 10G Type A x 2
USB3.1 Gen 2 10G Type C x 1
10/100/1000M Ethernet x1
SD4.0(UHS-II) Card-Reader x1
CFast2.0 Card-Reader x1
Features
Intel Titan Ridge Universal dock support both Thunderbolt Host and MFDP host PC or Notebook.(Intel Alpine Ridge is old version, only support Thunderbolt3 host PC or Notebook)
Supports 2x thunderbolt3 40Gbps and Thunderbolt3 daisy chain.
Supports single 8K@60Hz(7680x4320),5K@60Hz (5120x2880) UHD or dual 4K@60Hz display output.
Thunderbolt Port A support PD 60W charging(5V/9V/15V/20V @3A).
Thunderbolt Port B support PD 15W charging(5V@3A).
USB3.1 Gen 2 Type A supports 1000MB/S and 5V@1.5A.
USB3.1 Gen 2 Type C supports 1000MB/S and 5V@1.5A.
SD4.0(UHS-II) Card-Reader supports 280MB/S
CFast2.0 Card-Reader supports 500MB/S
LAN connect: Comply with IEEE802.3X protocol Support band width to 10Mbps/100Mbps/1000Mbps

Operating System Support
Mac OS X 10.12 and future releases.
Windows 8/10 32 and 64 bit and future releases.
