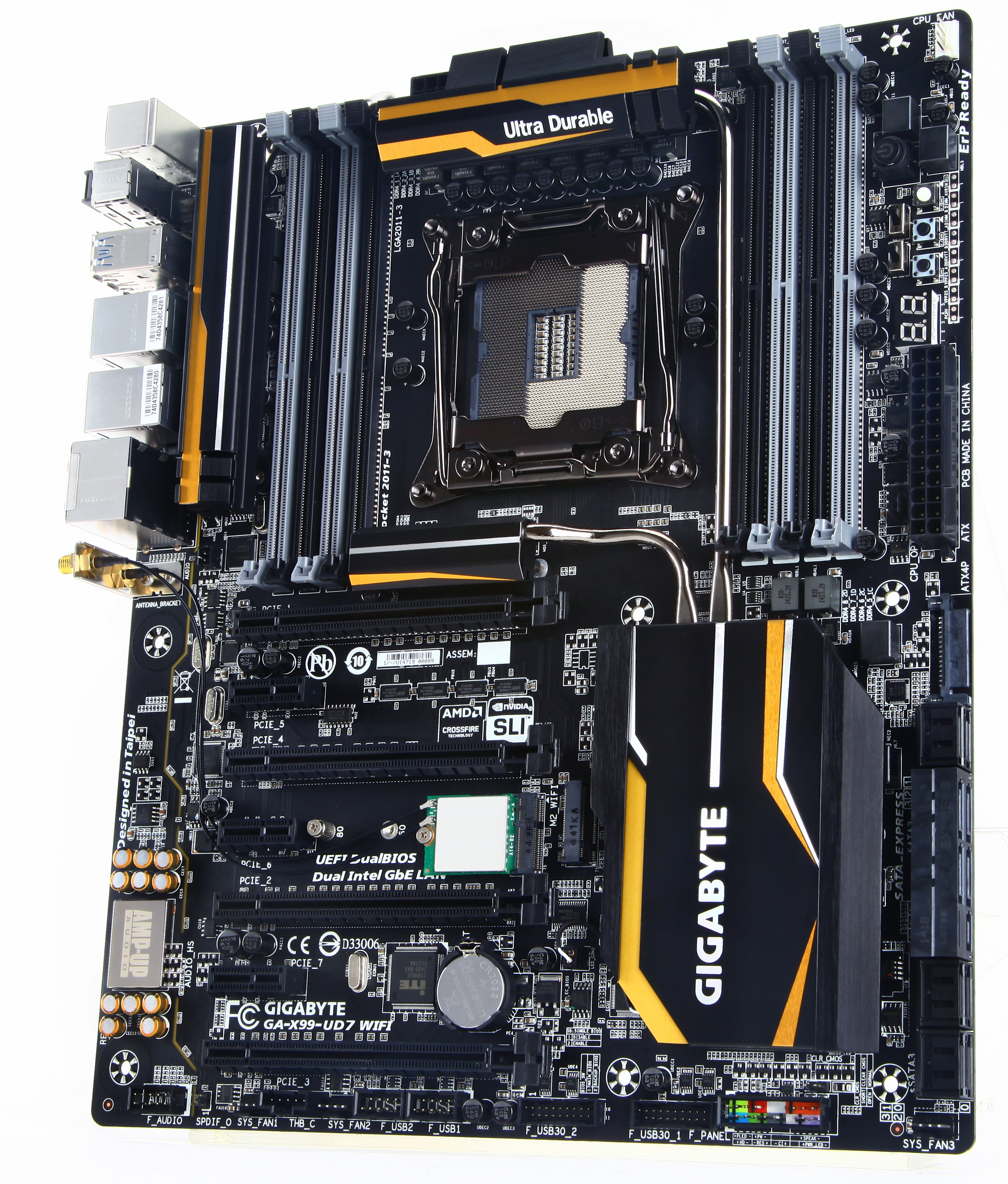

GIGABYTE X99 series motherboards are the first to support the latest Intel® Core™ i7 Extreme Edition CPUs and DDR4 memory. Designed to fulfill the needs of the high-end desktop segment, the GIGABYTE X99-UD7 WIFI motherboard is the ultimate platform for users wanting long lasting quality, unrivalled performance and great looks that complement any system build.
The GIGABYTE X99-UD7 WIFI uses an all-digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.
The GIGABYTE X99-UD7 WIFI motherboard brings the expandability needed to make your system the ultimate one with an onboard pin header to accommodate the addition of a GIGABYTE Thunderbolt™ add-in card. The Thunderbolt™ controller can provide bandwidth of up to 20 Gbps, compared to a max of 10 Gbps on previous generation designs. This allows for incredible data transfer speeds when using high performance storage devices, while also supporting daisy-chaining of up to 12 devices and triple digital display support.
• Chipset: Intel® X99 Express Chipset
• CPU: Supports LGA2011-3 Intel® Core™ i7 Extreme Edition processors
• Memory: 8 DIMMs, Quad Channel DDR4, supports up to 64 GB
• Dual Thunderbolt™ 2 Ports (20Gbps)
• WLAN: 2x2 dual-band 11ac up to 867Mbps & BT 4.0 / 3.0 + HS support
