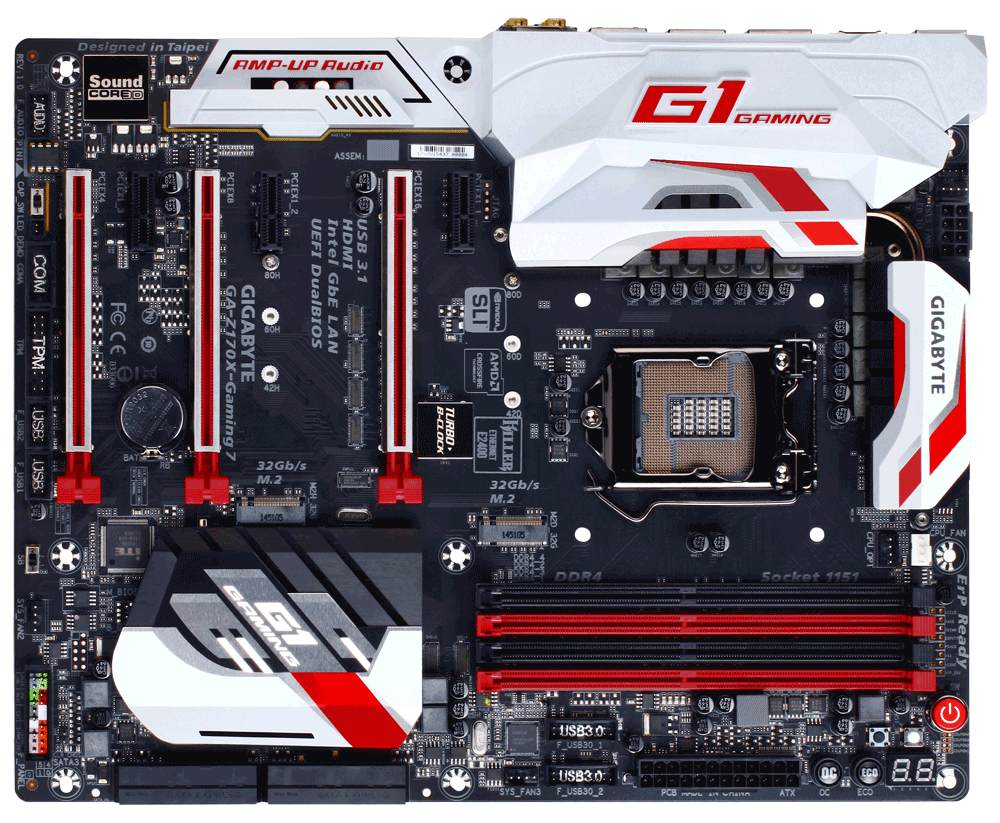

GA-Z170X-Gaming 7-EU

  • Category: Motherboard
GIGABYTE
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Ports:
1
Thunderbolt Version:
Thunderbolt 3

- Intel® Thunderbolt™ 3 Certified Motherboard
- Supports 6th Generation Intel® Core™ Processor
- Dual Channel DDR4, 4 DIMMs
- Intel® USB 3.1 with USB Type-C™ - The World's Next Universal Connector
- 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
- Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- Integrated HDMI 2.0 support
- Creative SoundCore™ 3D Gaming Audio
- Killer™ E2400 and Intel® Gaming Networks
- LED Trace Path with Multi-Color Choice
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- GIGABYTE UEFI DualBIOS™ Technology

|| Intel® Thunderbolt™ 3 Certified Motherboard ||
Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the GIGABYTE Z170X-Gaming 7-EU, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

To upgrade the Z170X-Gaming 7-EU, go to: http://www.gigabyte.com/products/product-page.aspx?pid=5615#utility
