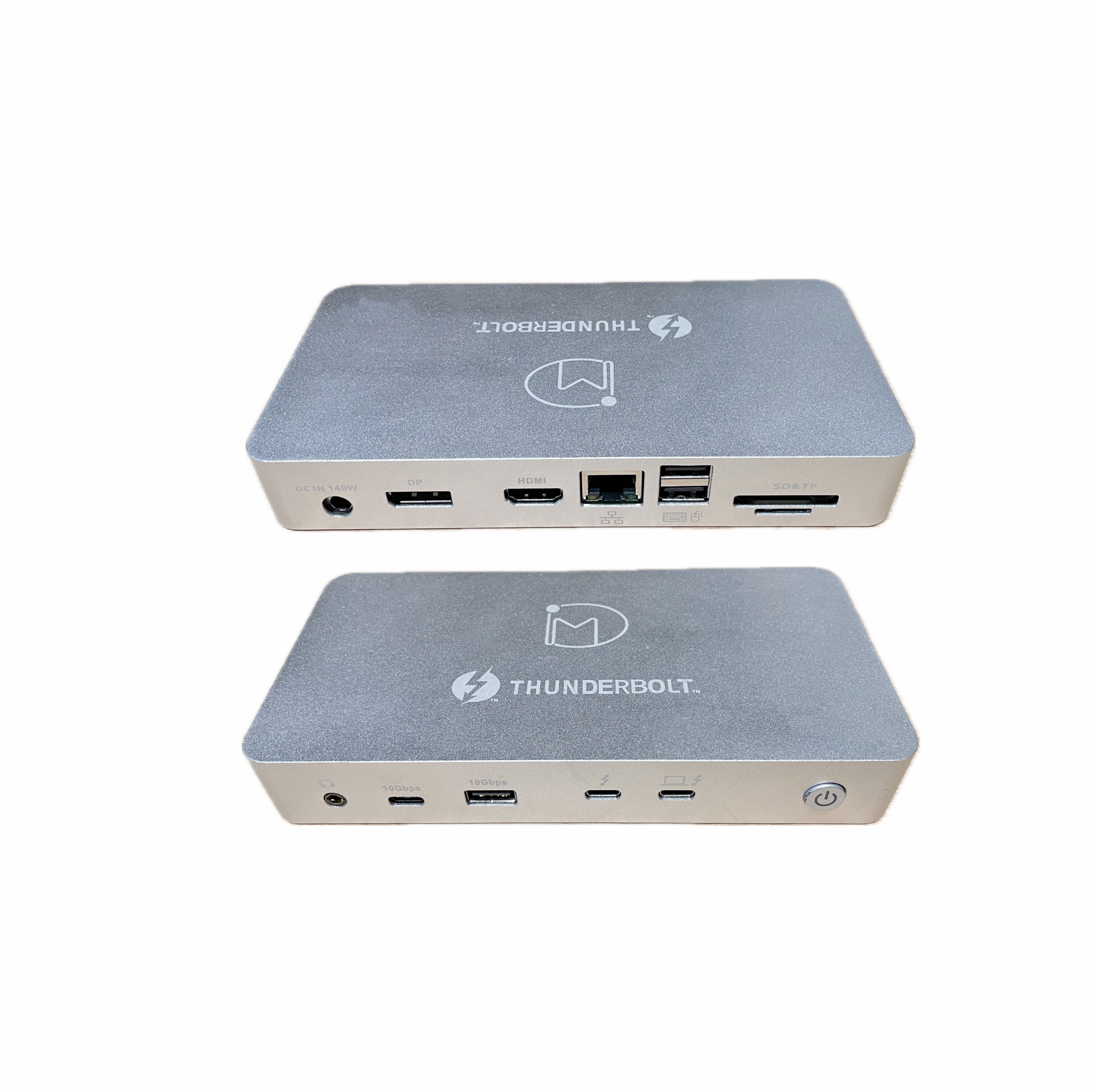

The Thunderbolt Certified 13-in-1 thunderbolt module and IO board combination. thunderbolt module from Dongman delivers peak performance. Connect your 4K screens through 1x HDMI ports and 1x DisplayPort ports — a rare level of display flexibility in a Thunderbolt dock. But the real expansion picks up at the ports. Offering thirteen total ports to park your peripherals, including 5x USB ports, SD and microSD card readers, Audio, and 1Gbps Ethernet. It adapts to your desk for vertical orientation options.

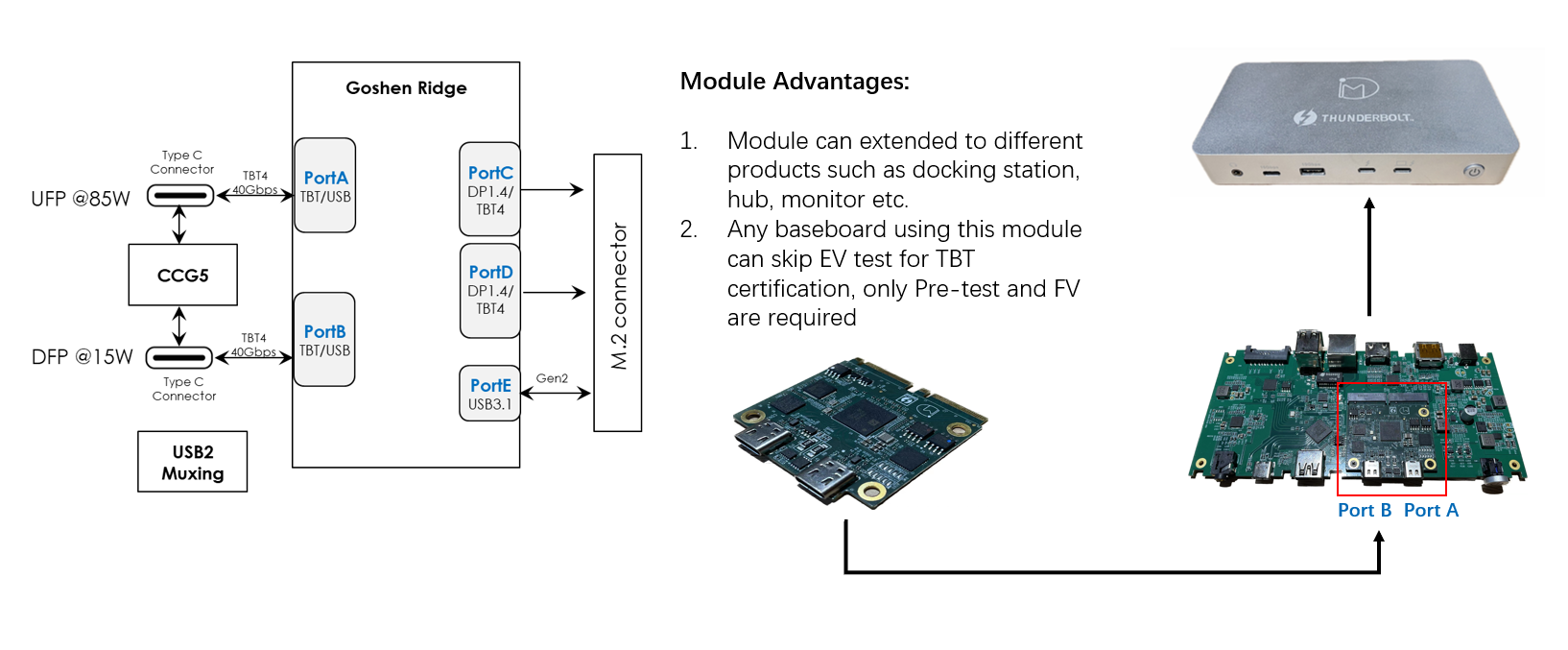

2*TBT4 ports, Port A - UFP up to 40Gbps @85W PD charging, Port B - DFP up to 40Gbps @15W, support daisy chain
1*USB-C, USB3.1 Gen2, up to 10Gbps
1*USB-A, USB3.1 Gen2, up to 10Gbps
2*USB-A, USB2.0 up to 480Mbps
1*DP1.4, support 1*4k 60Hz, 1*8k 30Hz, 1*5k 60Hz etc.
1*HDMI2.0, support 1*4k 60Hz, 1*8k 30Hz, 1*5k 60Hz etc.
1*RJ45, Gigabit Ethernet
1*TF, TF3.0 Card Slot
1*SD, SD3.0 Card Slot
1*Audio, 3.5mm
Windows, support Win10 & Win11
MacOS, support Ventura
