Delock 87789 Thunderbolt™ 3 Mini Docking Station 8K - DisplayPort / HDMI / USB / LAN / Audio / PD 3.0

  • Category: Dock
Delock
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
2
Thunderbolt Version:
Thunderbolt 3

Delock 87789 Thunderbolt™ 3 Mini Docking Station 8K - DisplayPort / HDMI / USB / LAN / Audio / PD 3.0

Description

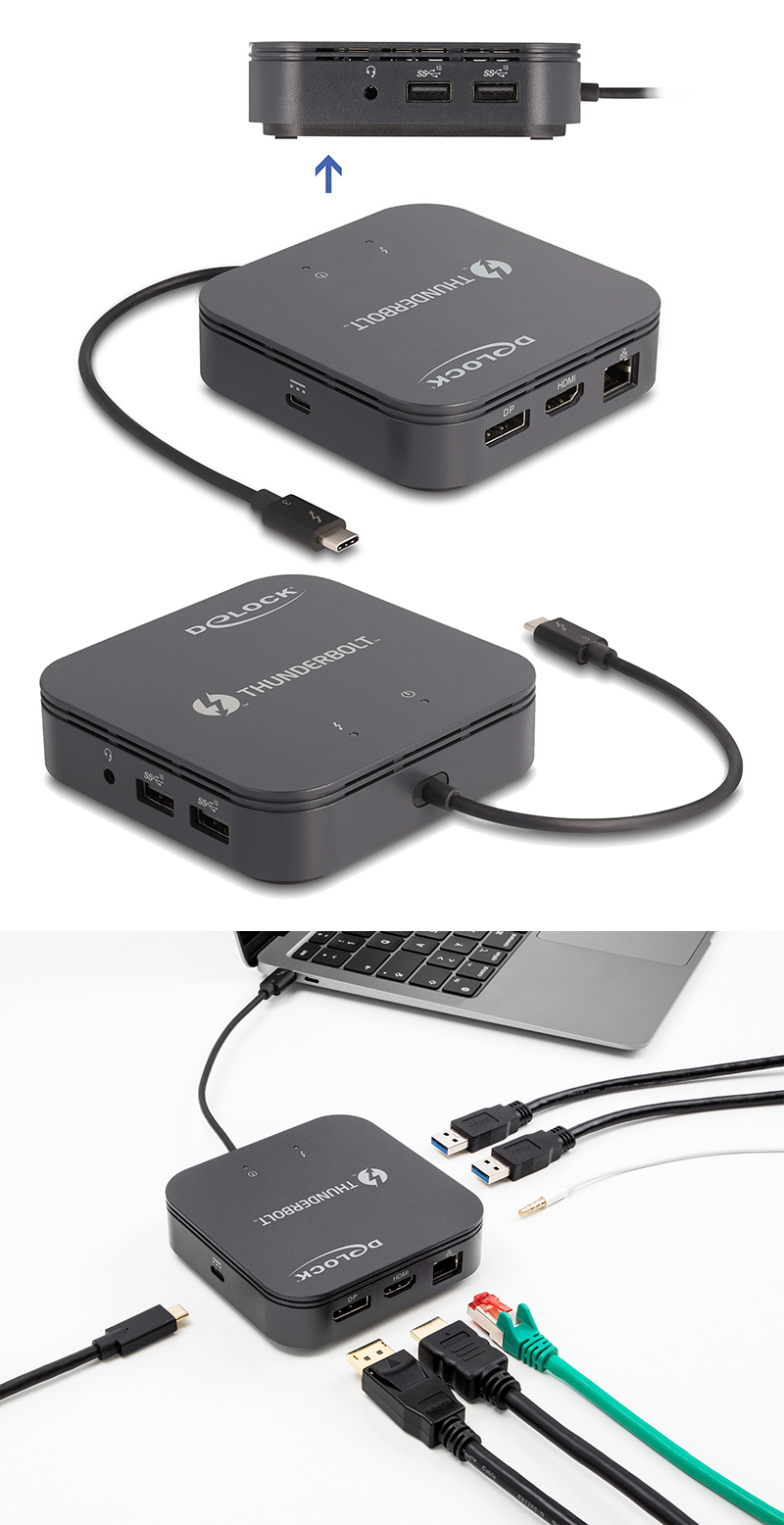

This Thunderbolt™ 3 mini docking station by Delock can be connected to a computer with a Thunderbolt™ 3 port and provides a variety of interfaces. The DisplayPort output allows the connection of an 8K display, the HDMI output a connection of a 4K display, two monitors with 4K resolution can be operated simultaneously. Two built-in USB ports allow the use of peripherals, connections for headset and Gigabit network complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 4K 60 Hz per monitor.

USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Plug & Play
This device can simply be plugged in and is immediately ready for use. No extra power supply is needed when using the docking station.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

Specification
• Connectors:
1 x Thunderbolt™ 3 male
2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
1 x DisplayPort female
1 x HDMI-A female
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
1 x Headset 3.5 mm 4 pin jack
1 x USB Type-C™ female (power supply)
• Chipset: Intel Titan Ridge
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort up to 7680 x 4320 @ 30 Hz
HDMI up to 3840 x 2160 @ 60 Hz
DisplayPort + HDMI up to 3840 x 2160 @ 60 Hz
• Transmission of audio and video signals
• Functions: Mirrored or Extended
• Supports HDCP 2.2
• Supports HDR
• Headset jack: auto detection OMTP or CTIA standard
• Plug & Play
• Output power for host: max. 60 W
• 2 x LED indicator
• Colour: black
• Cable length without connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 100 x 100 x 25 mm

System requirements
• Mac OS 11.2.3 or above
• Windows 10/10-64/11
• PC or laptop with a free Thunderbolt™ 3 or Thunderbolt™ 4 port

Package content
• Thunderbolt™ 3 docking station
• User manual

Package
• Retail Box
