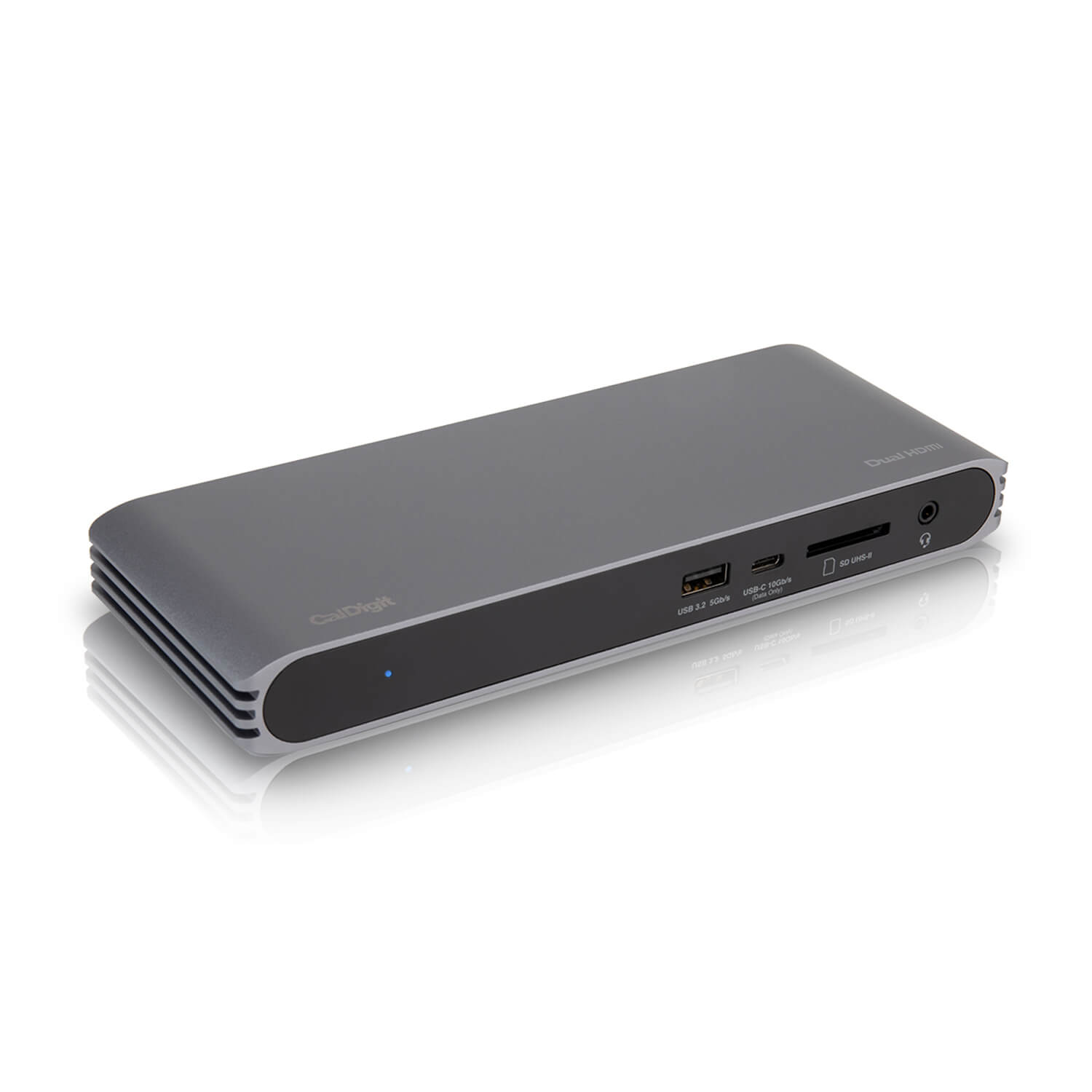

CalDigit USB-C HDMI Dock

  • Category: Dock
CalDigit
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
1
Thunderbolt Version:
Thunderbolt 3

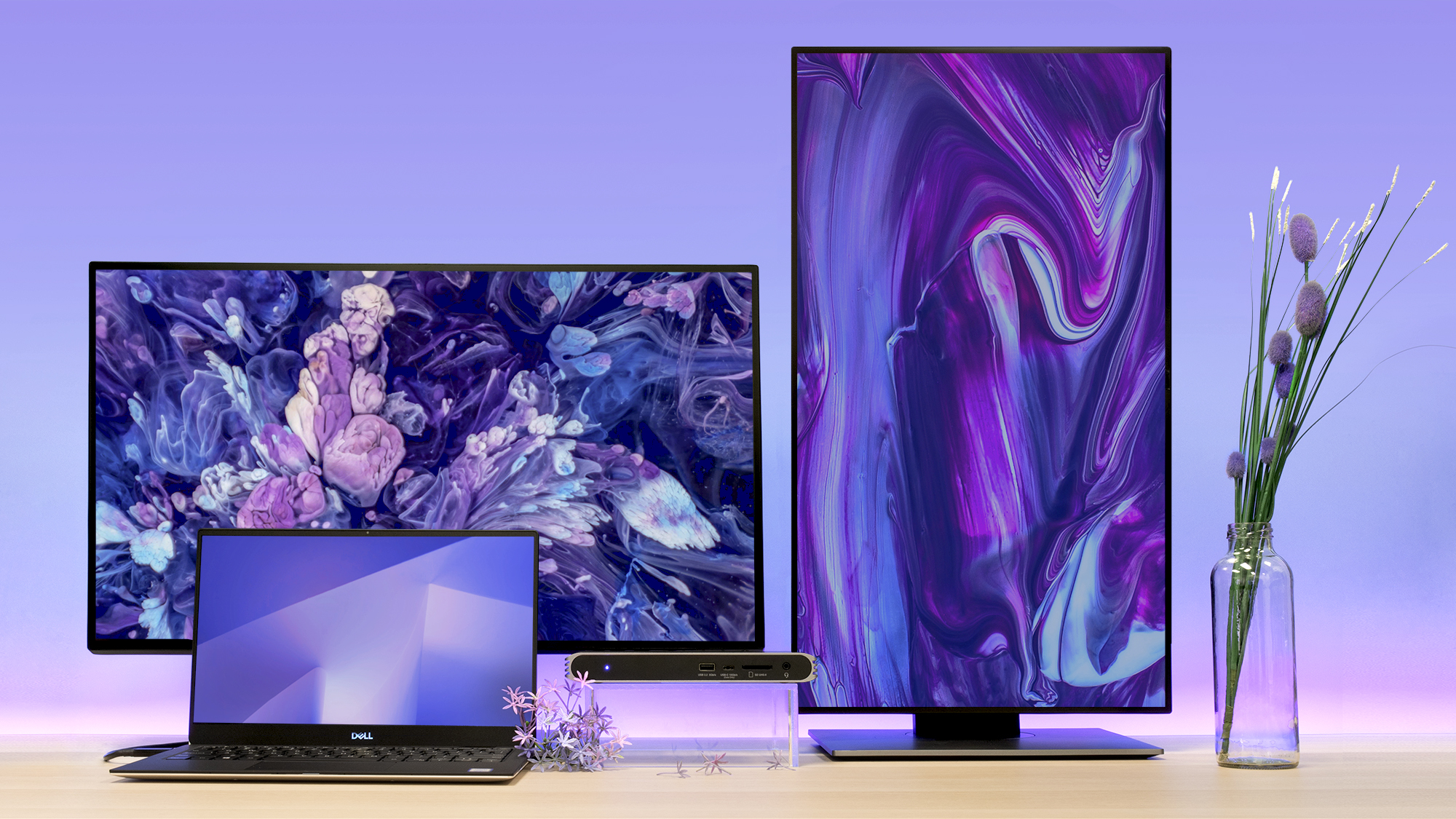

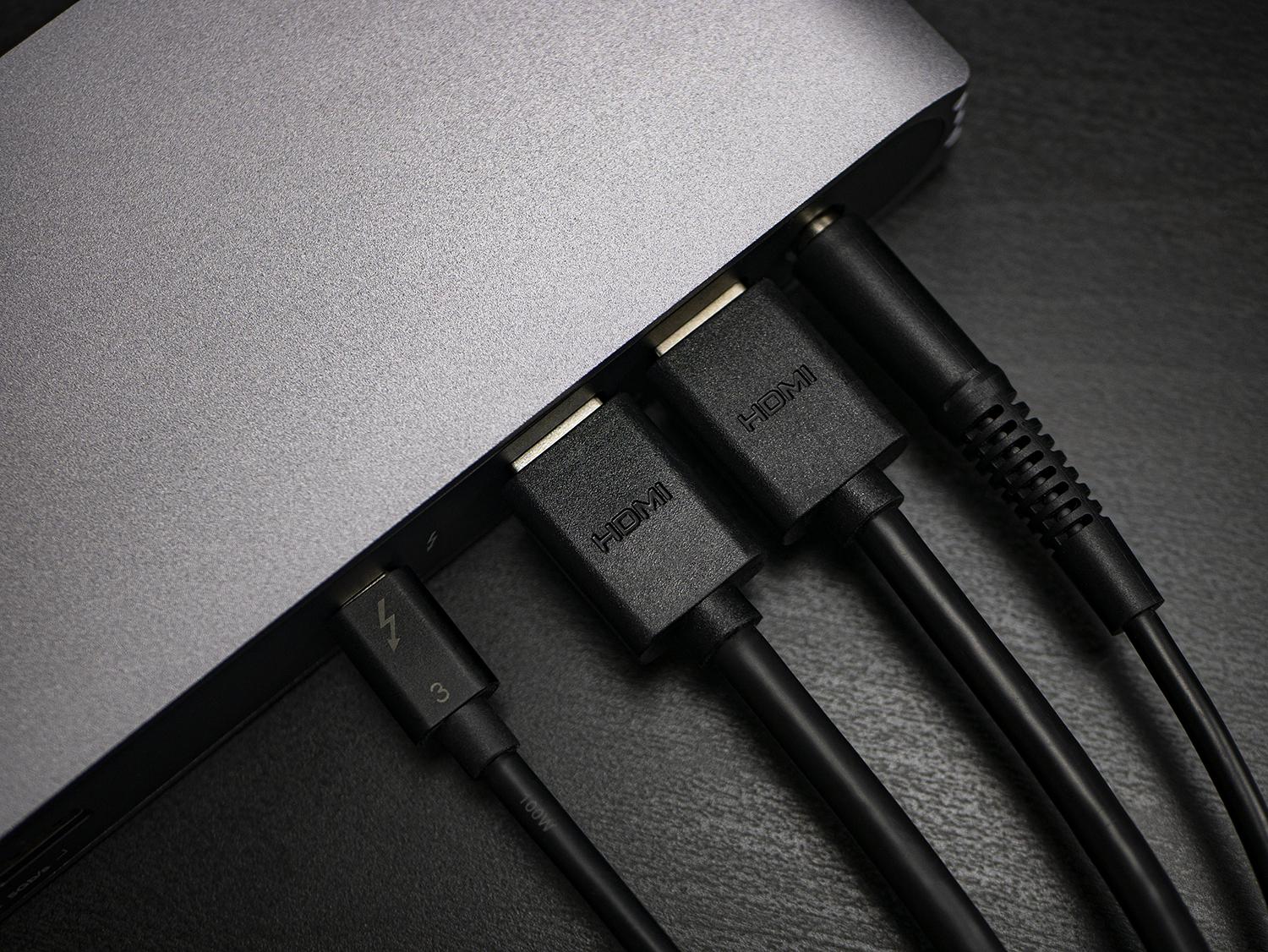

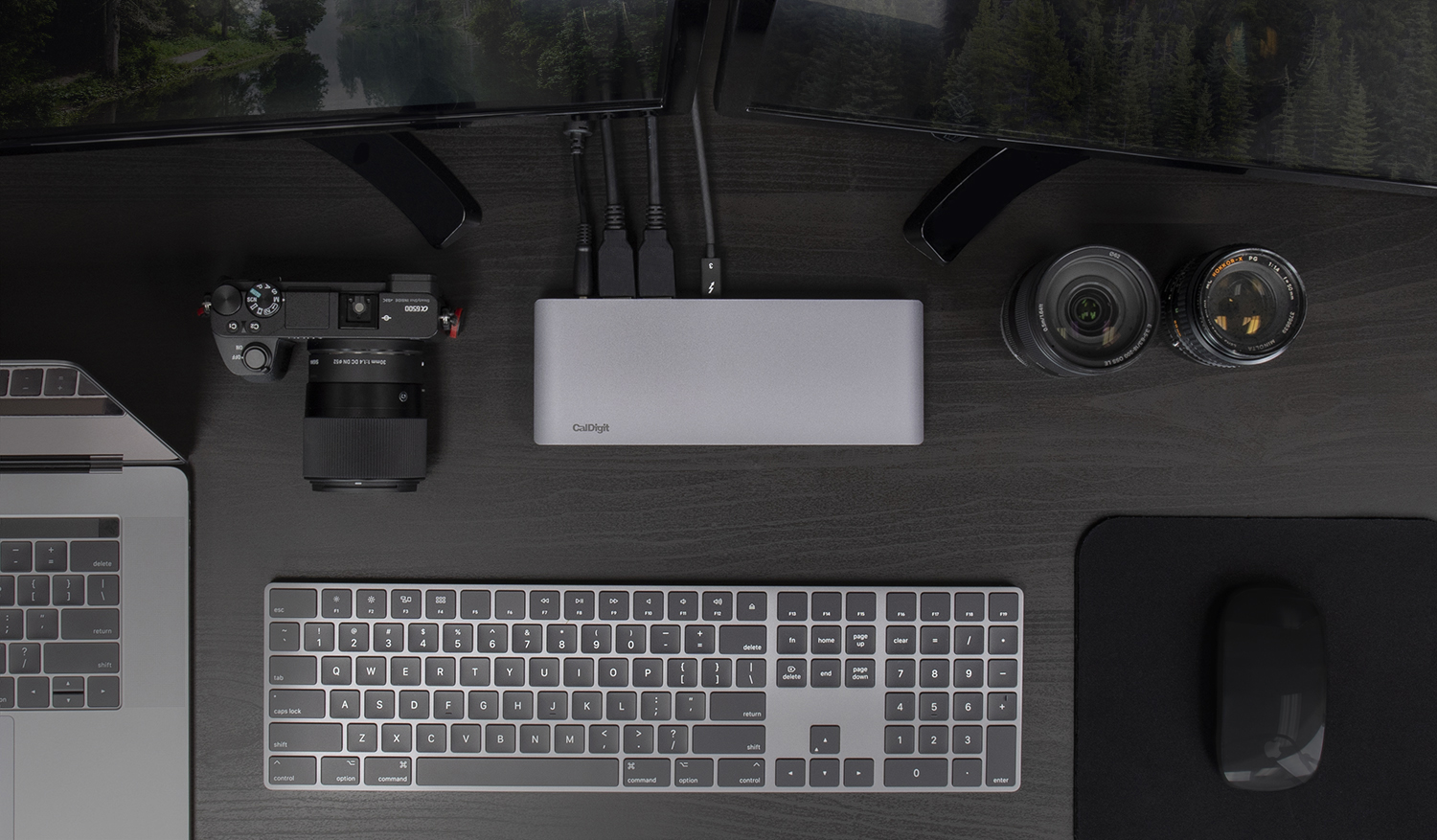

USB-C HDMI Dock is a universal dock that is based on Intel Thunderbolt controller. It has two built-in HDMI 2.0b connectors for directly connecting dual 4K 60Hz monitors in either “Extended” or “Mirrored” configurations to your Thunderbolt 3 laptop without the need for any USB-C video adapters. USB-C users can connect up to a single 4K 30Hz monitor, or up to dual 2K 30Hz monitors depending on the configuration, bandwidth, and DisplayPort version of their computer.

It can also charge laptop up to 94W, perfect for the power hungry laptops such as MacBook Pro 16".

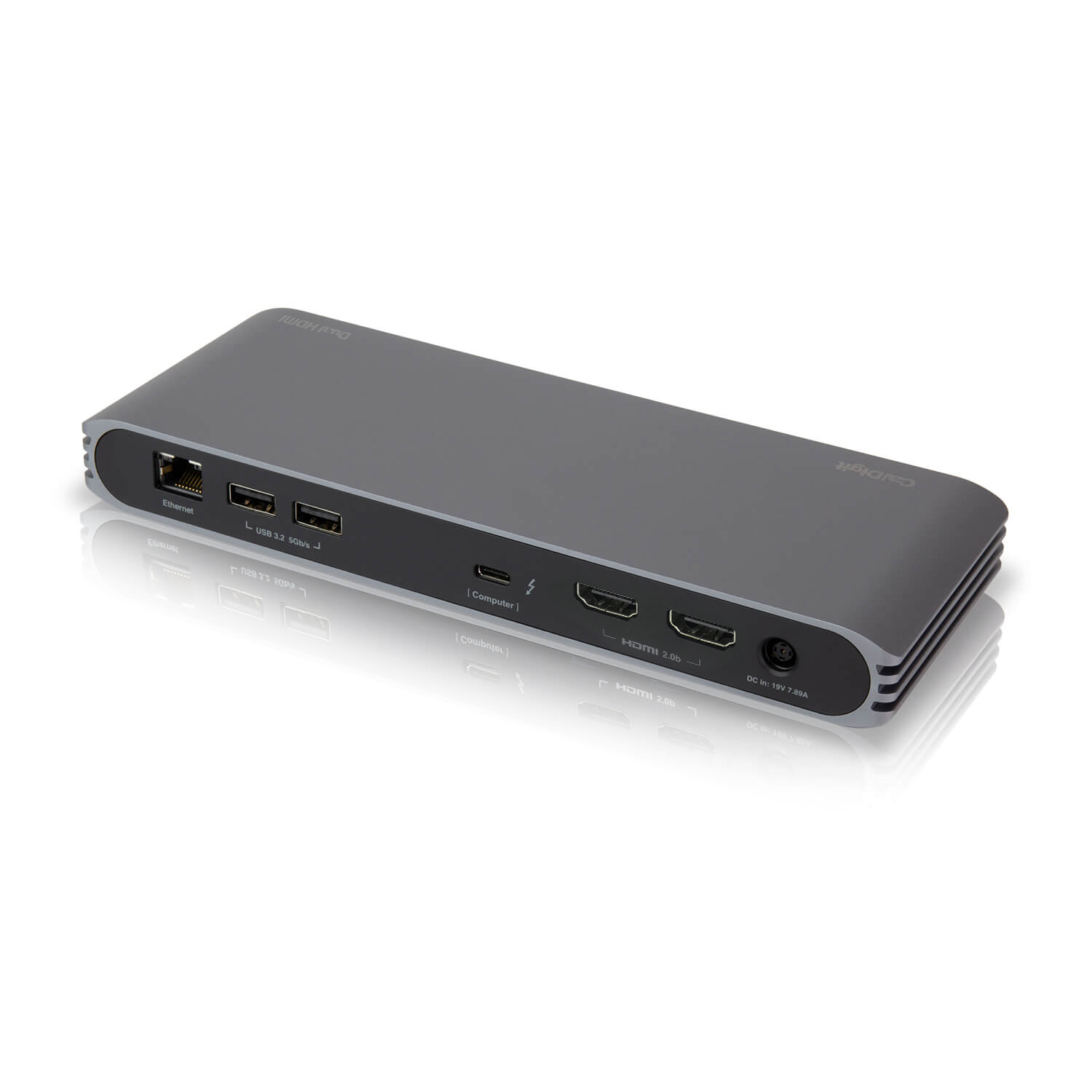

Interface:
1 x USB-C (and Thunderbolt 3) to the host
2 x HDMI 2.0b
3 x USB 3.2 Gen. 1 Type-A (5Gbps)

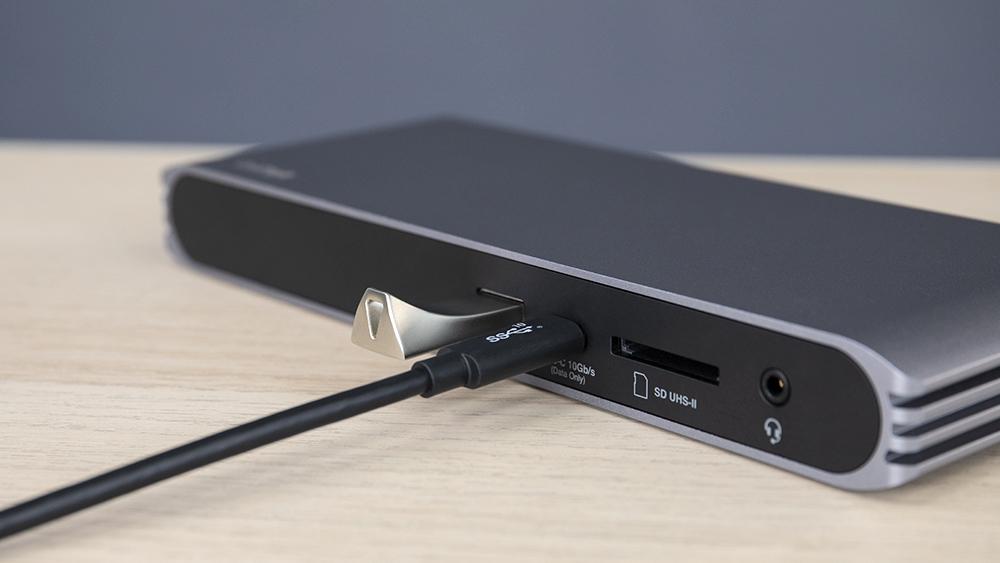

1 x USB 3.2 Gen. 2 Type-C (10Gbps)

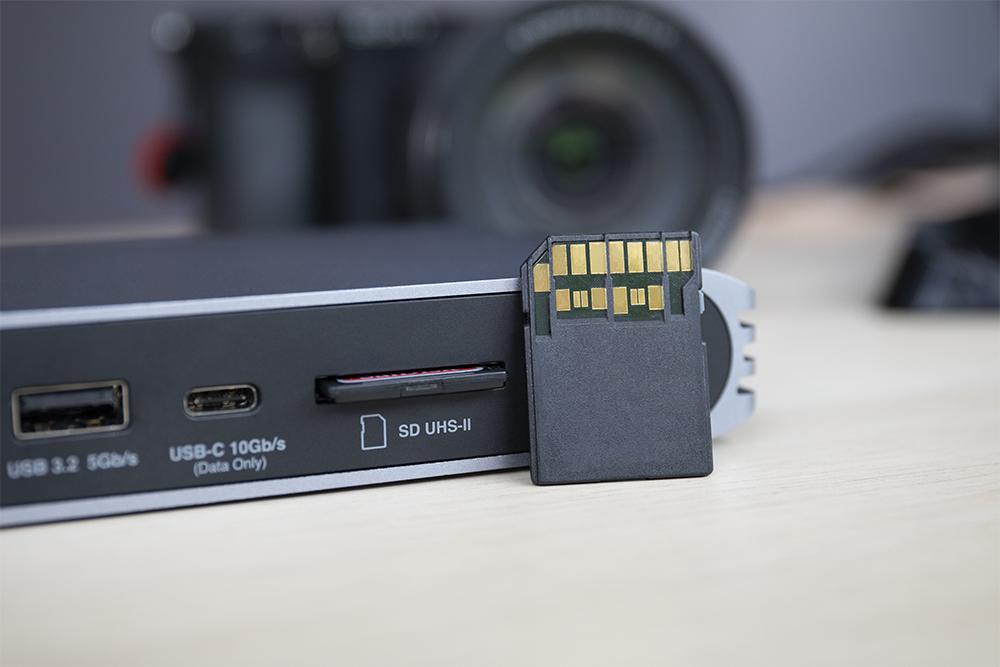

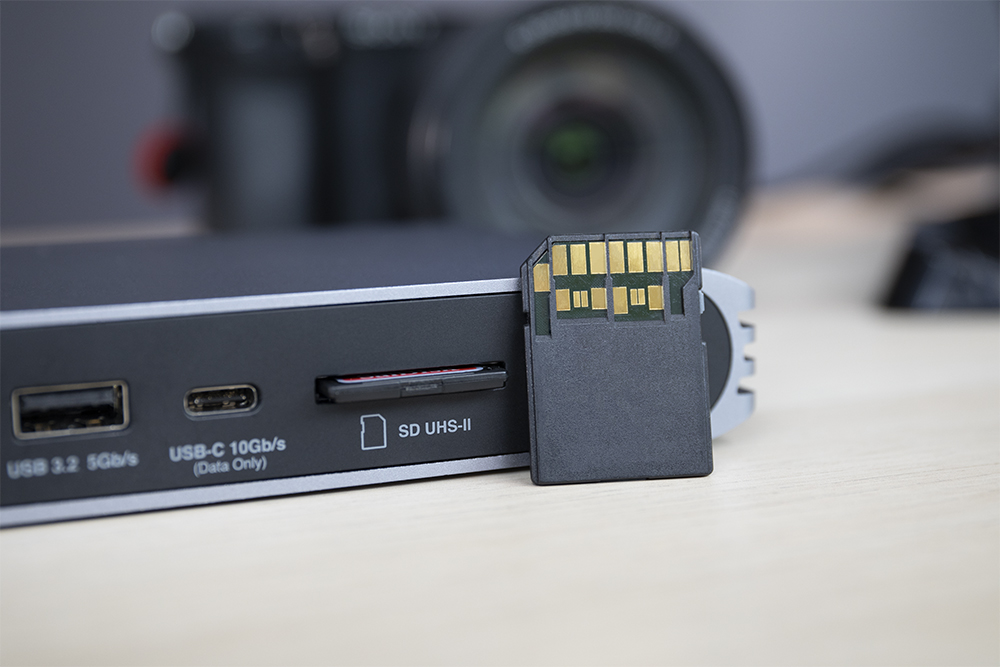

1 x SD Card Reader (SD 4.0 UHS-II)
1 x Gigabit Ethernet

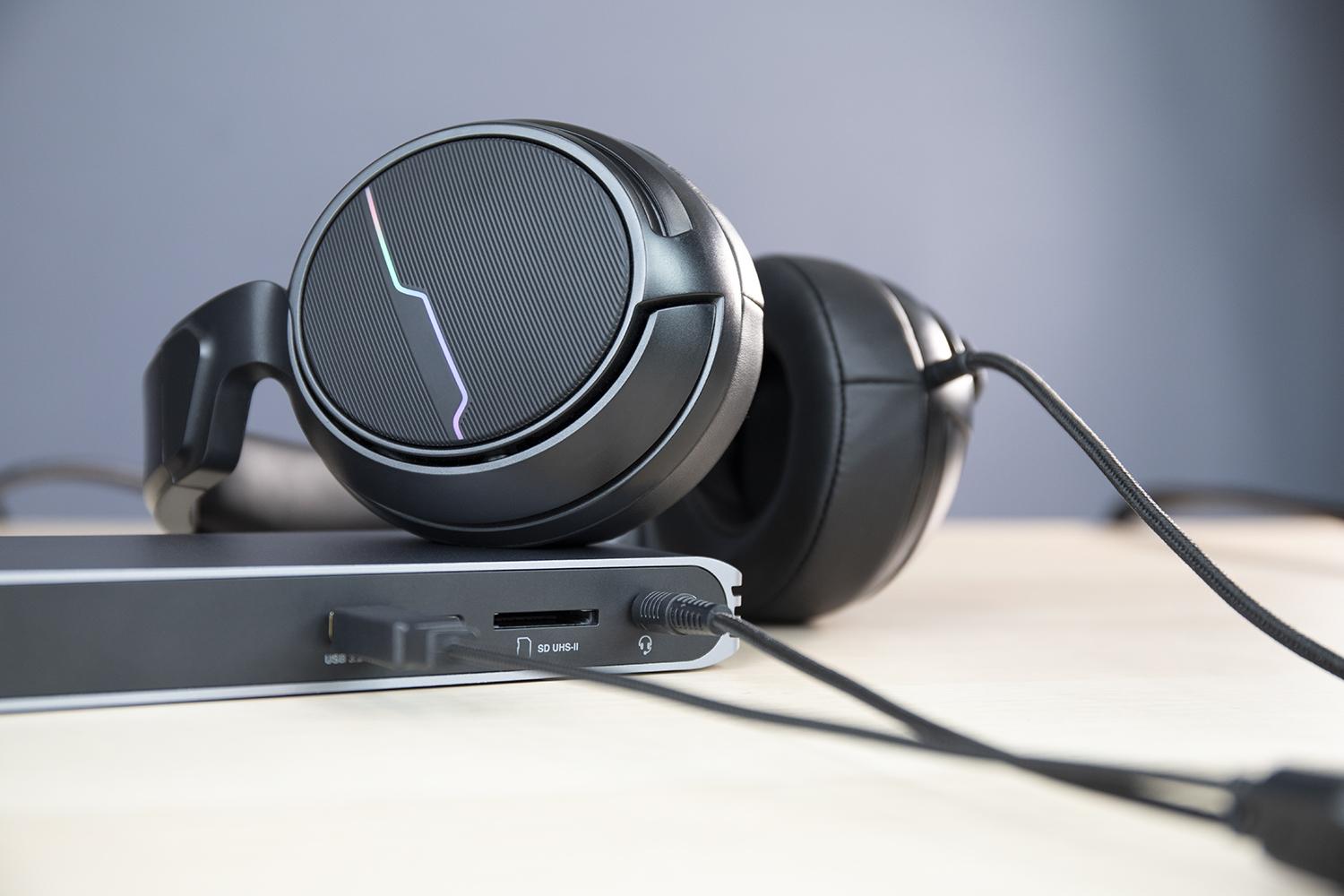

1 x 3.5mm Analog Audio In & Out

Power:
AC Input : 100V-240V ~50Hz/60Hz
DC Output: 19V/7.89A, 150W

System Requirements:
USB-C computer
Thunderbolt 3 computer
macOS 10.14.5 or later
Windows 10 or later

Laptop Power Delivery:
Up to 94W
