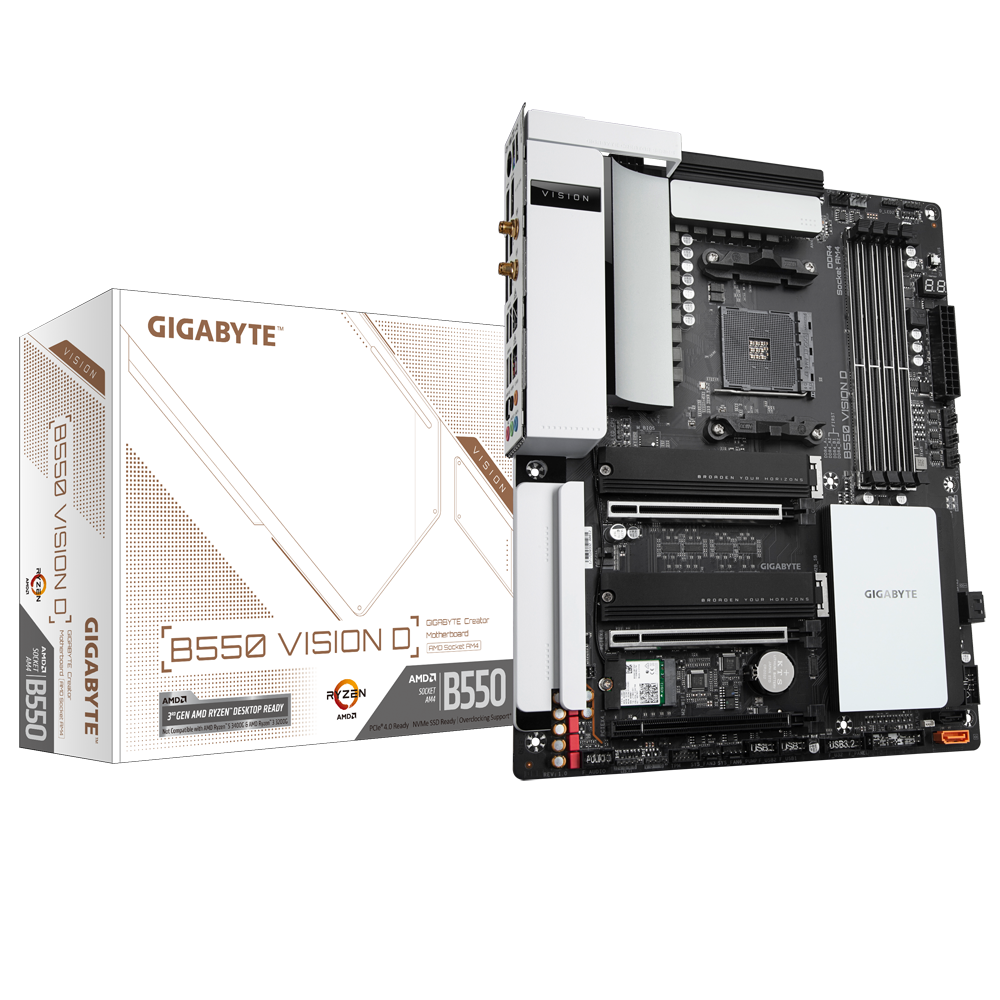

B550 VISION D

  • Category: Motherboard
GIGABYTE
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
2
Thunderbolt Version:
Thunderbolt 3

AMD B550 Creators Motherboard with Intel Thunderbolt™ 3 certification, effective cooling solution, DDR4 ECC & Non-ECC memory, Intel® Wi-Fi 6 802.11ax and dual Intel® LAN with cFosSpeed, Triple PCIe® 4.0/3.0 x16 slots, Dual PCIe® 4.0/3.0 M.2 Connectors

Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots
Multi-graphics configurations offer by dual PCIe® 4.0/3.0 x16 and one PCIe® 3.0 x16 slots
Fully Quadro® QVL Tested
The limitless connectivity by Thunderbolt™ 3
High-bandwidth and low-latency network support by dual Intel® GbE LAN with cFosSpeed
Intel® Wi-Fi 6 802.11ax makes latency a thing of the past
Effective cooling solution design for the better thermal dissipation
Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration
Ultra-Fast NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 interface M.2 connectors with Thermal Guards
Comprehensive connectivity with USB3.2 Gen 2 Type-C™ connection
Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
