AMP BOX MINI

  • Category: Adapter/Expansion, eGFX
ZOTAC
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
1
Thunderbolt Version:
Thunderbolt 3

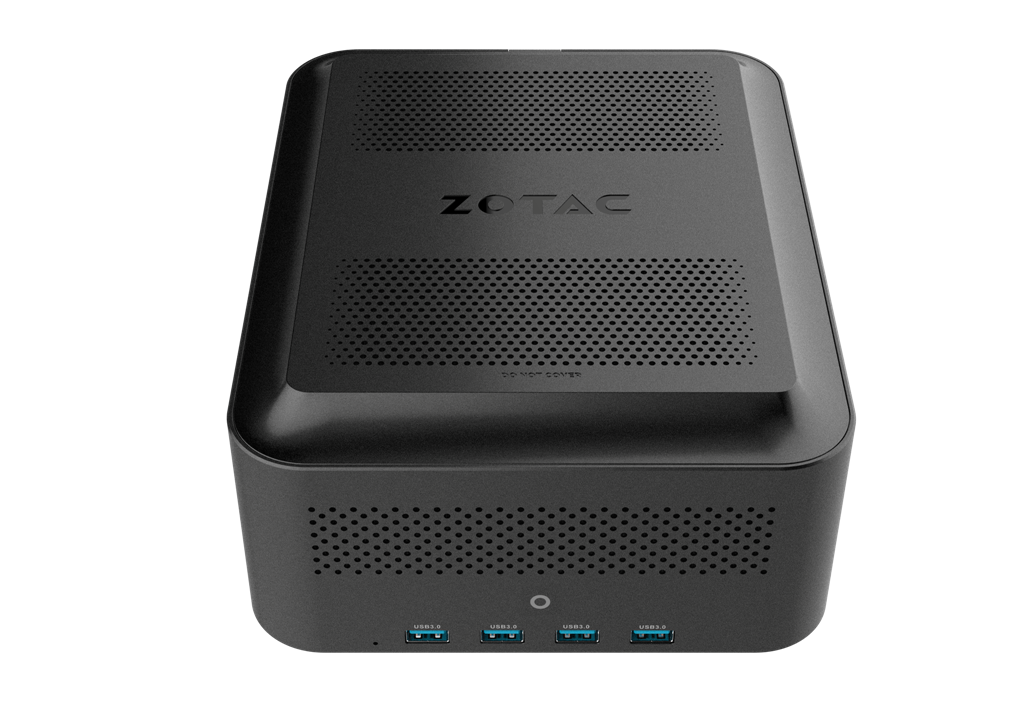

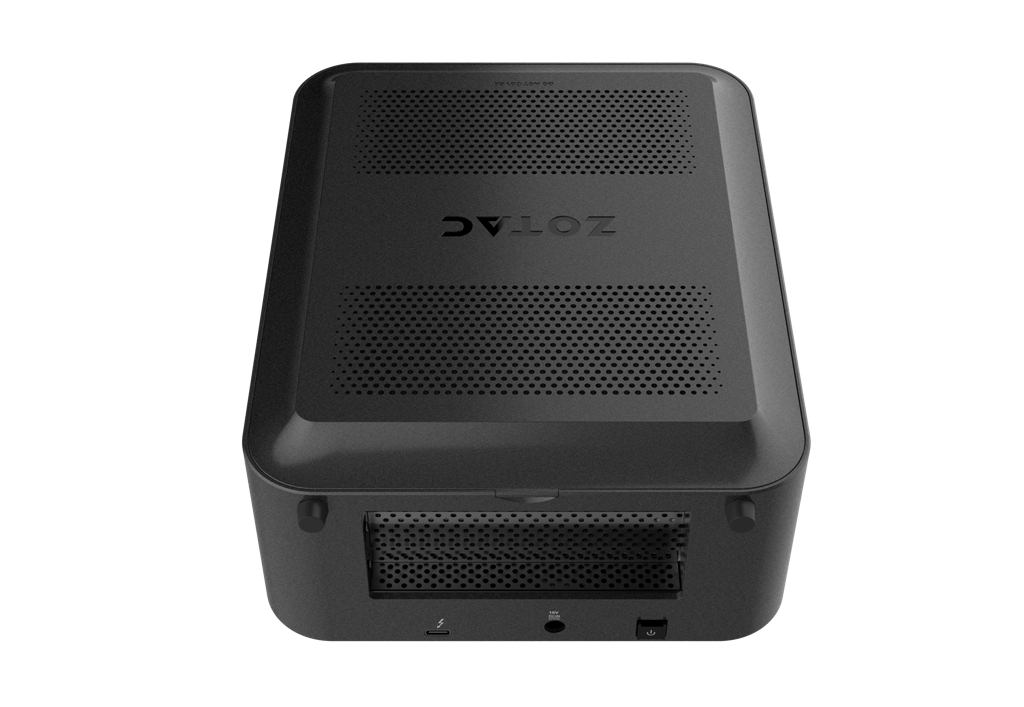

ZOTAC AMP BOX Mini is the smallest Thunderboltâ„¢ 3 expansion box that transforms any Thunderbolt 3 Mini PC, Notebook, or Desktop PC into a powerful Game Ready or VR Ready System, or supplements it with a fast expansive storage with NVMe PCIe x4 SSD.

Common Features:

- Product Type: eGFX enclosure
- Power supply configuration: External
- Power rating: 230W max
- Charging support: 15W max
- No of Thunderbolt Controllers: 1
- No of USB 3 Ports: 4
- Feather weight and super compact design
- Upgrade Thunderboltâ„¢ 3 compatible systems beyond its limit and inject it with the power to take on AAA / VR titles
- Thunderboltâ„¢ 3 connectivity offers up to 40 Gbps bandwidth, 3x more than USB 3.1 Gen2
- Accommodated dual slot graphic card, support up to 150W graphic cards (AMD and Nvidia)
- Support PCIe device up to 200mm / 7.8 Inch length
- Compatible with select ZOTAC ZBOX Mini PCs

Supported Operating System and Graphic Cards:

Microsoft Windows: Win10 RS3 and later
Graphic Cards Supported:
ZOTAC GeForce GTX 1060 Mini
https://www.zotac.com/product/graphics_card/zotac-geforce-gtx-1060-mini#...
ZOTAC GeForce GTX 1050 Ti Mini
https://www.zotac.com/product/graphics_card/zotac-geforce-gtx-1050-ti-mi...
Sapphire Pulse ITX Radeon RX570 8GD5
http://www.sapphiretech.com/productdetial.asp?pid=A3E2DA7D-54F5-49D0-934...

macOS: High Sierra 10.13.4 and later
Graphic Card Supported:
Sapphire Pulse ITX Radeon RX570 8GD5
http://www.sapphiretech.com/productdetial.asp?pid=A3E2DA7D-54F5-49D0-934...
