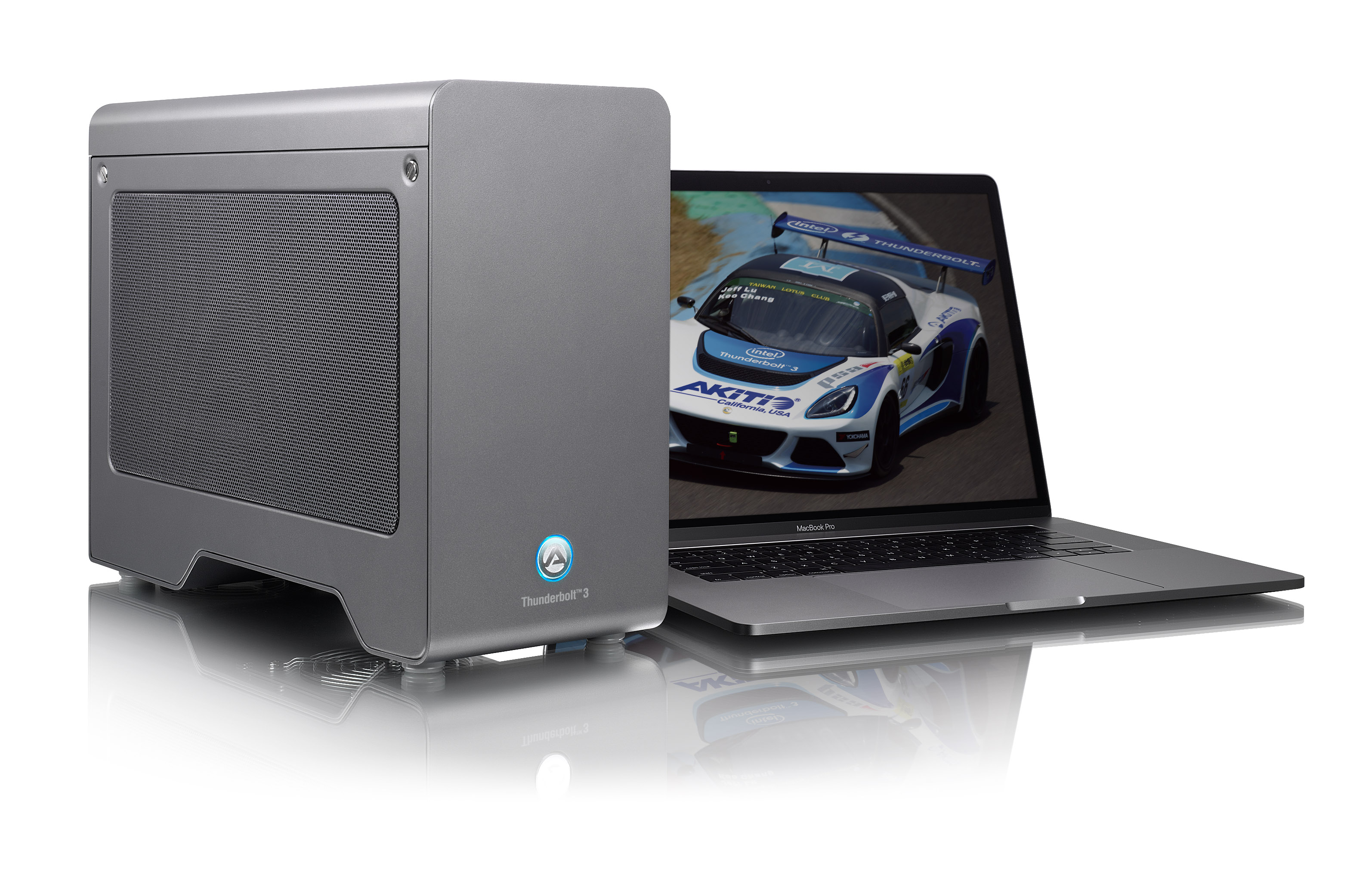

AKiTiO Node Pro

  • Category: Adapter/Expansion
Akitio
Operating System:
Mac OS X
Operating System:
Windows
Self or Bus Powered:
Self Powered
Thunderbolt Version:
Thunderbolt 3

The Node Pro provides an additional PCIe slot for Thunderbolt 3 computers (e.g. laptop computers) where installing an internal expansion card is not an option and for systems where there is not enough space for more PCIe cards. The Thunderbolt 3 (USB-C) connection not only makes adding an external PCIe card easy but it also allows you to take the device with you to use on location and move it from one system to another. Installing and replacing the PCIe card is a simple matter of removing a few thumb screws and does not require any tools.

Features:

- Thunderboltâ„¢ 3 for lightning fast transfer speeds up to 40 Gbps
- Dedicated DisplayPort for additional monitor to expand the workspace
- 2nd Thunderbolt port supports Thunderbolt 3, USB 3.1, and DisplayPort devices
- USB power delivery provides 60W of power to recharge compatible laptops
- Built-in 500W SFX power supply with an extra pair of 8-pin PCIe power connectors
- 1 PCIe (x16) slot supporting full-length, full-height, double-width cards
- 4 lane PCI Express 3.0 compliant interface
- Wire mesh panel to dissipate heat from cards with on-board fans
- Retractable carry handle to easily transport the device
- No tools required for installation of PCIe card
