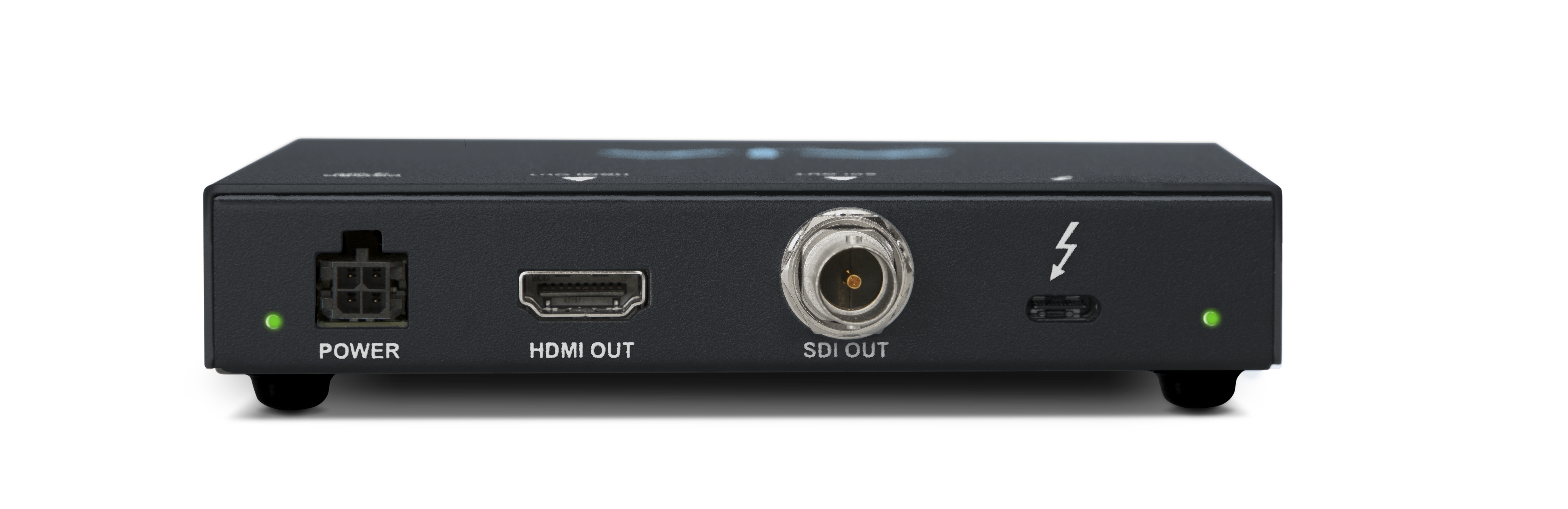

T-TAP Pro is the newest generation of AJA’s proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.

Features

• 12G-SDI and HDMI 2.0 connectivity for working with 4K or UltraHD over a single cable up to 60p
• SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI and 270Mbit
• 4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p
• 1x 12G-SDI BNC with 16-channel embedded audio
• 1x HDMI 2.0 with 8-channel embedded audio
• 1x Thunderbolt 3 connector

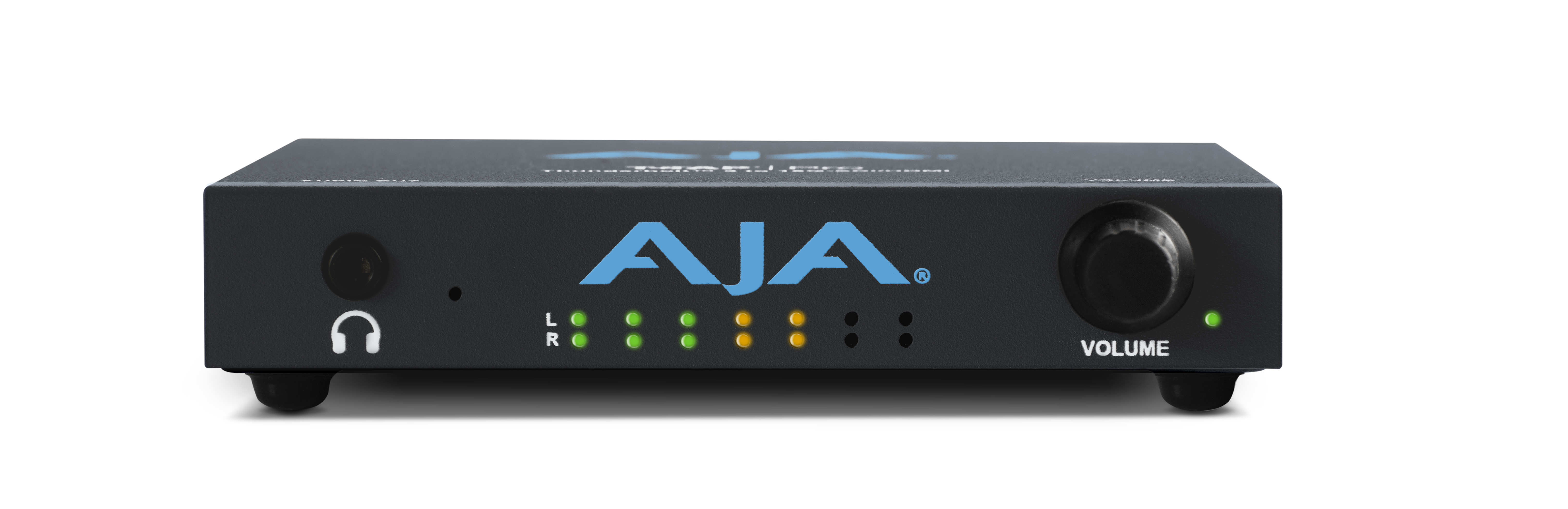

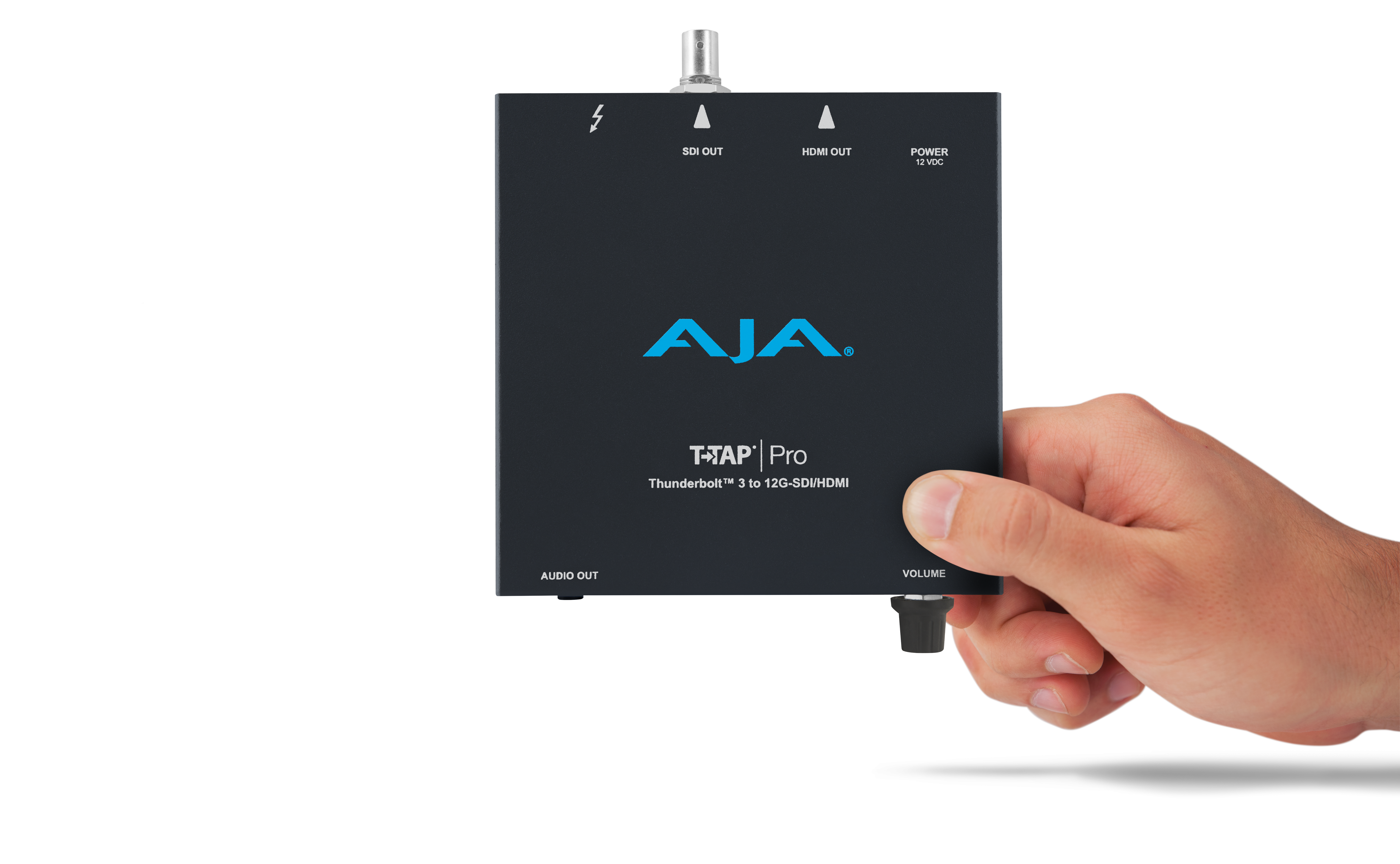

• Compact, silent, mobile form-factor with Front-panel Audio Levels Reference Display
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
• PQ, HLG and HDR10 Support
• HDR Metadata Auto Playback Detection
• Headphone jack and quick access audio level control for mobile environment
• Thunderbolt, Power and Bitfile Connection Status Indicators
• Power Supply Included
• 3 Year Warranty

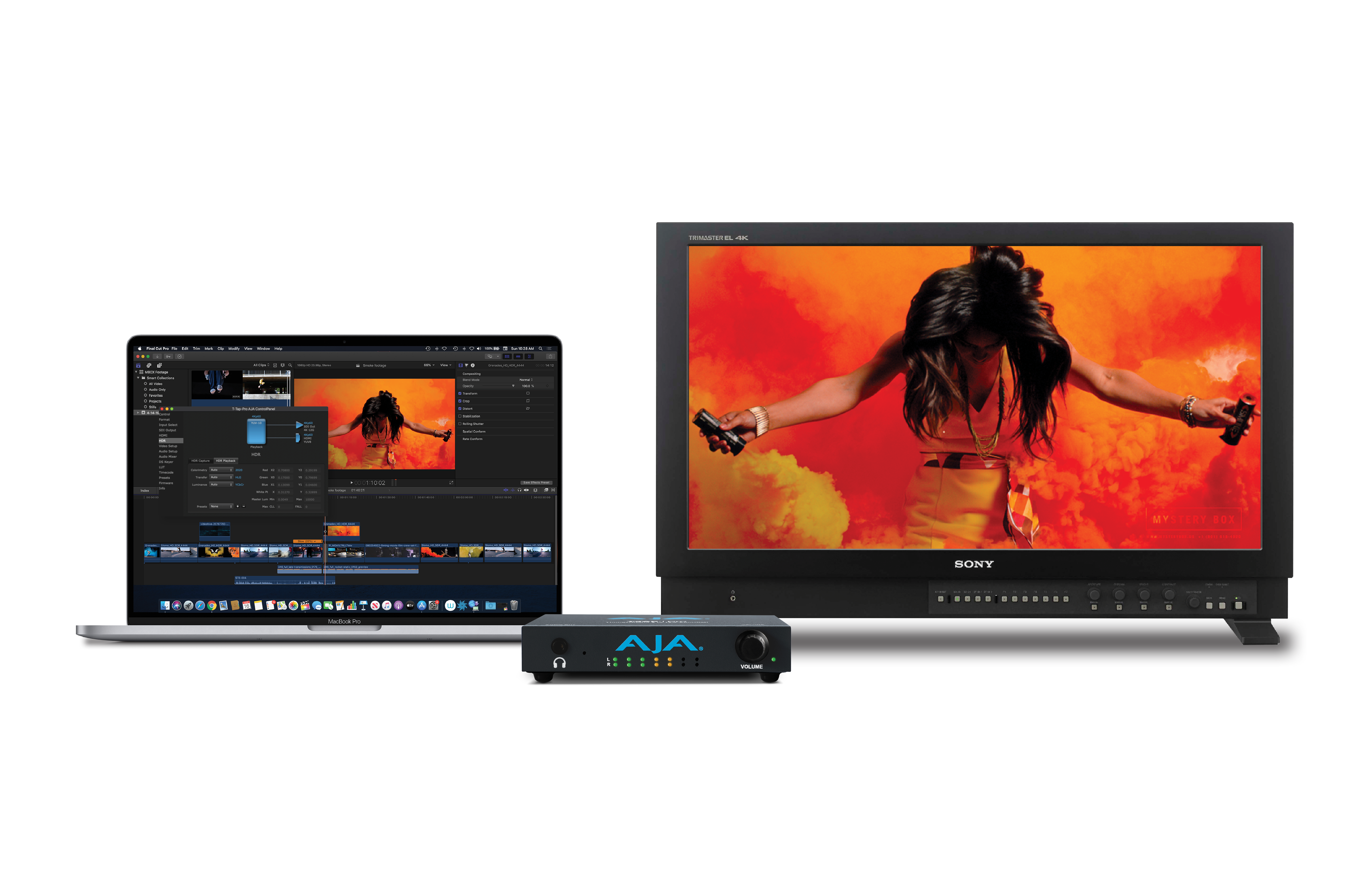

T-TAP Pro is compatible with a broad array of software, including but not limited to Apple Final Cut Pro, Adobe Applications such as Premiere Pro and After Effects, plus Avid Media Composer and Pro Tools. AJA’s driver support ensures that you are up and running with the latest releases, with an ongoing commitment to future updates and enhancements via free, new firmware updates.
