Io 4K is the next evolution of capture and output hardware offering a full set of professional video and audio connectivity with support for the latest 4K and UltraHD devices. The power of Thunderbolt 2 enables Io 4K to handle a wide range of formats from SD to HD, UHD and full 4K over both SDI and HDMI.
Io 4K is certified for both Mac and Windows and you can download drivers here: http://www.aja.com/en/products/io-4k#support
Futureproof
With more affordable high-resolution cameras available, many productions are opting to shoot at a higher resolution even if final delivery is still in SD or HD. This offers the flexibility to re-master at higher resolutions in the future.
Io 4K can support your current SD and HD workflows and provides a path to move to higher resolution productions whenever the need arises. The realtime downconverter also means you can work at higher resolutions and easily create lower resolution deliverables without the need to recapture or re-edit. All at a size that’s small enough to easily take on-set or in the field.
Professional Connectivity

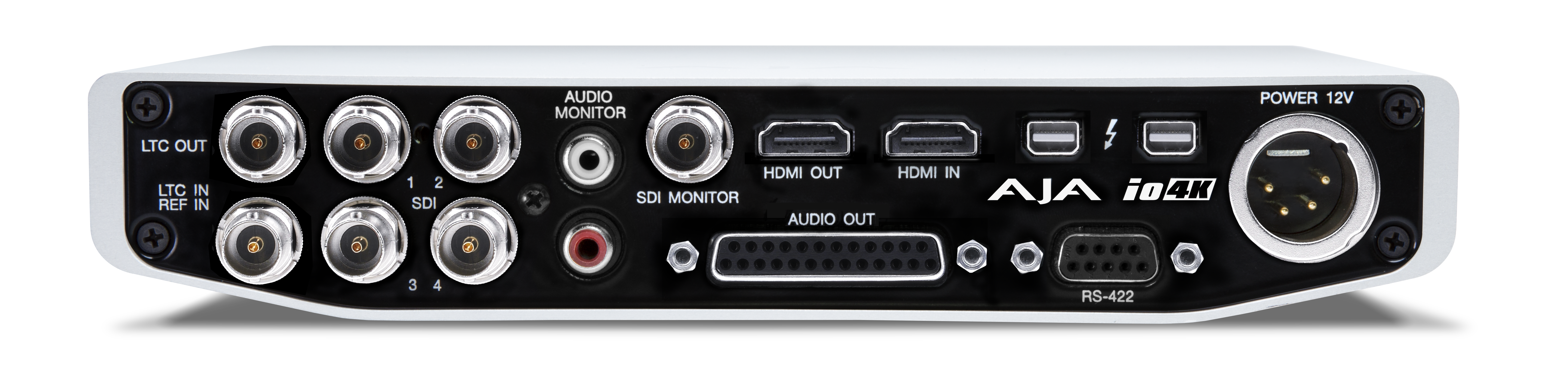

Io 4K has the connectivity required for today’s variety of productions. With full-sized BNC connectors for 4K input and output as well as HDMI 1.4 in and out, Io 4K can handle professional 4 x SDI 4K signals as well as capturing and outputting 4K over HDMI for use with more affordable 4K equipment. An additional BNC provides a dedicated, HD-SDI downconverted output for easy viewing of 4K projects on HD monitors.
When working at 4K resolutions, Io 4K outputs a high-quality HD-SDI down-converted signal on a dedicated BNC connector. This HD signal can be used to output 4K projects directly to HD recorders for broadcast and for easy viewing of 4K images on HD monitors during post-production.
Embedded 16-channel SDI and 8-channel HDMI audio are supported as well as analog audio outputs via a standard DB-25 connection. Stereo monitoring is also possible with 2 x RCA outputs and a front panel mini-TRS headphone jack.
Io 4K can be locked to an external reference for integration into larger productions, or feed LTC in and out to ensure footage captured with Io 4K has the proper timecode. An RS-422 port allows control of tape decks for frame-accurate captures and layoffs.
Thunderbolt 2 technology provides an incredible amount of bandwidth on a single Thunderbolt cable. Io 4K capitalizes on this increased capacity to allow up to 4K signals to be captured and output.
With dual Thunderbolt 2 ports, Io 4K can daisy chain additional devices together such as high-resolution displays and high-capacity storage for a complete, portable solution that’s powerful enough to meet the demands of professional production.
Compatible
Seamlessly integrate Io 4K with leading post-production and delivery tools such as Apple Final Cut Pro X, Adobe Creative Cloud, AJA Control Room, Telestream Wirecast 5 and more. Io 4K gives you the flexibility to use the software tools that are appropriate for your workflow while maintaining a consistent, high-quality hardware capture and output solution that moves from SD to HD to 4K as you do.
