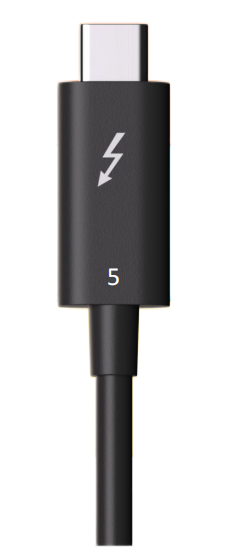

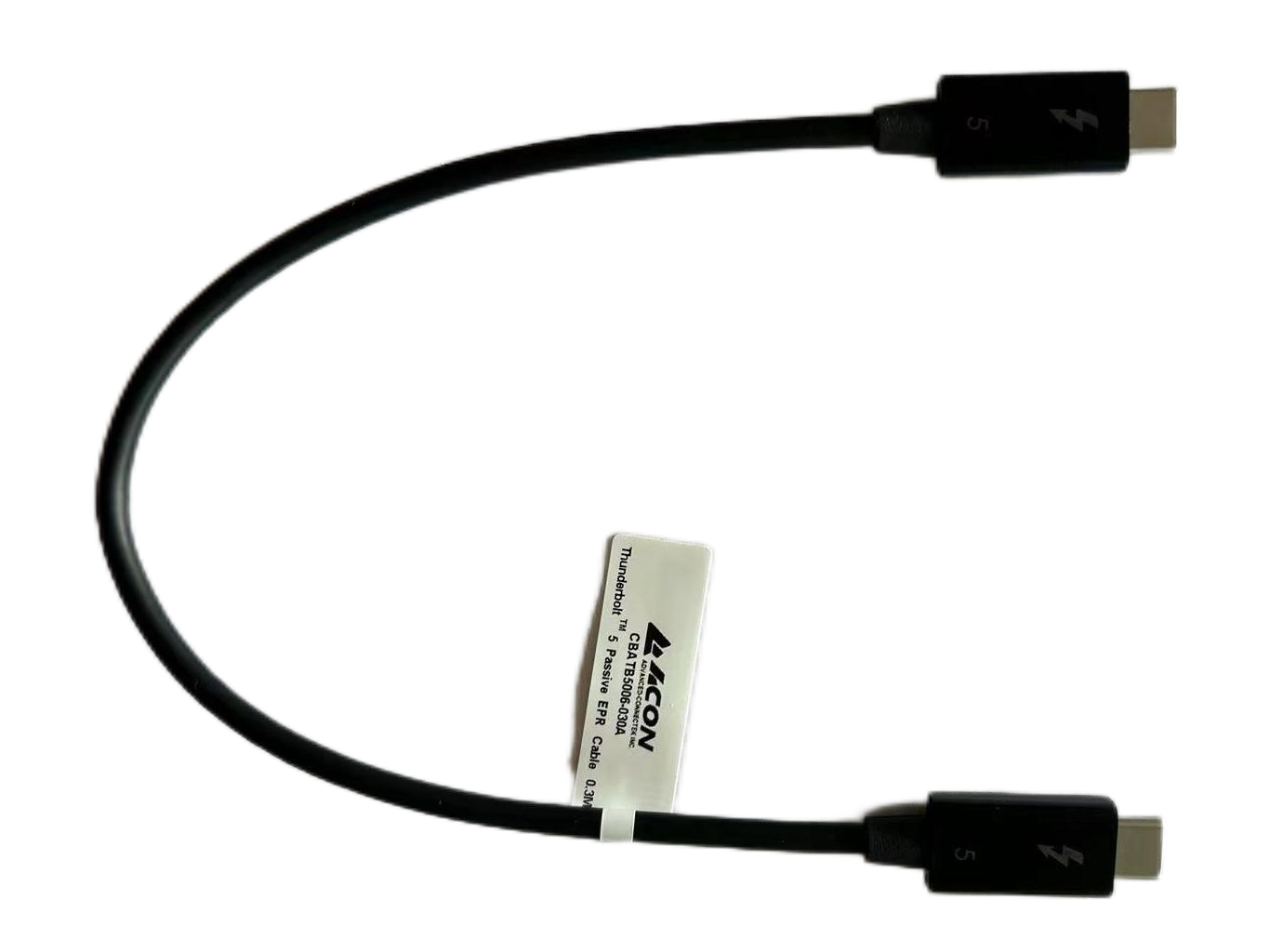

ACON, Thunderbolt 5 Passive EPR Cables 0.3M, 0.5M, 0.7M, 0.8M, 1.0M

  • Category: Cable
ACON, Advanced-Connectek Inc.
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Self Powered
Self or Bus Powered:
Bus Powered
Thunderbolt Version:
Thunderbolt 5

Key Features:
Compatibility with Thunderbolt 3/4 USB4* v2 &USB3 20G& PCle 4.0
Multiple 8Kfor Creators Support DP2.1
Support 80Gb/s 120Gb/s
Electrical Specification:
Conductor Resistance: 2Ω Max. at 20 ℃
Insulation Resistance:300VDC 20M Ω Min. For 10mS
Open & Short Test: 100%

Mechanical Specification:
USB C Connector insertion loss:5N-20N
USB C Connector extraction loss:8N-20N
Insertion/Extraction Cycles: 10,000 cycles Min..

Applications：
Smartphone
Tablet
Notebook(Laptops)
Home Entertainment
