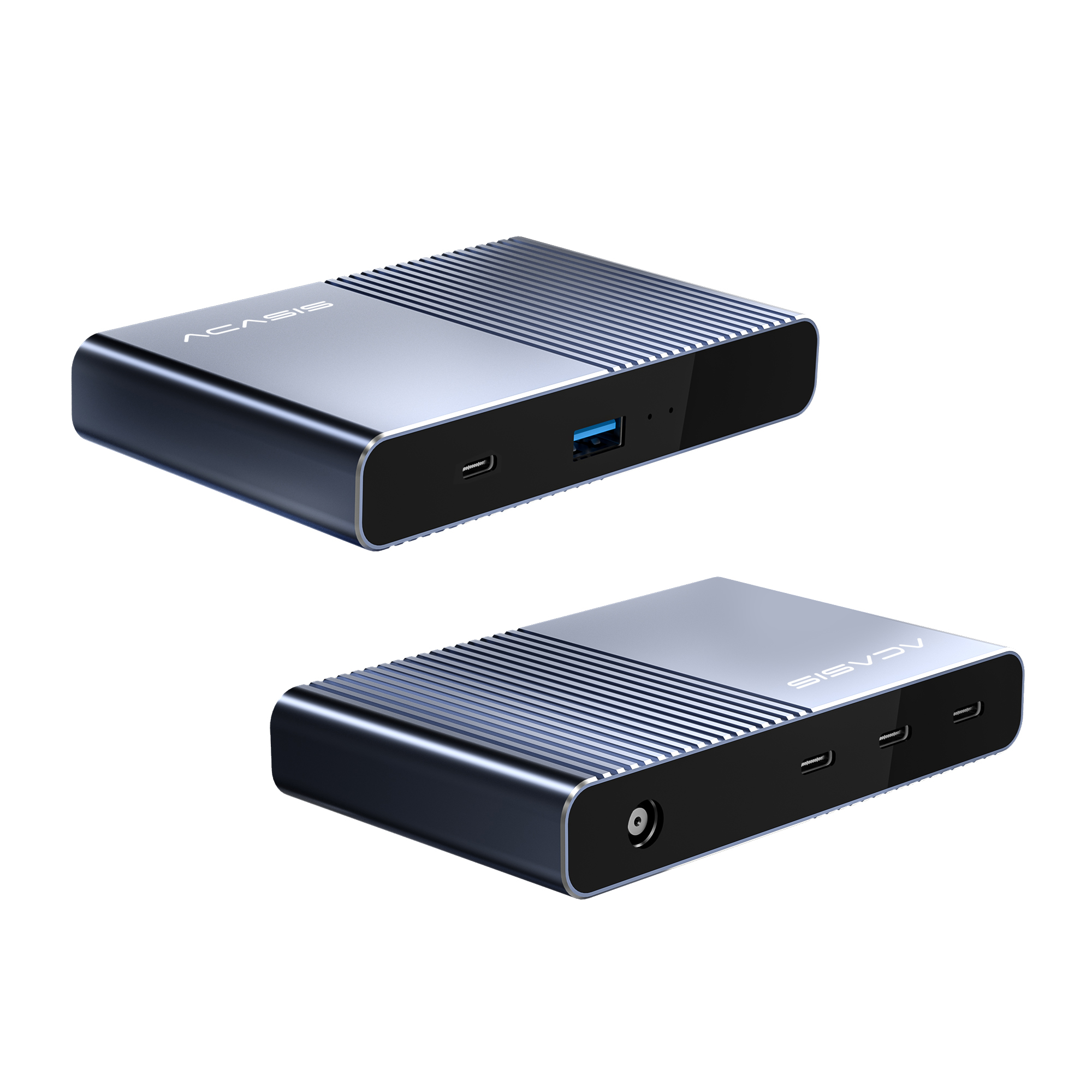

ACASIS THUNDERBOLT 4 SLIM HUB DOCK

  • Category: Dock
ACASIS Inc. Co., Ltd.
Operating System:
MacOS
Operating System:
Windows
Operating System:
Chrome OS
Self or Bus Powered:
Self Powered
Number of Thunderbolt Ports:
4
Thunderbolt Version:
Thunderbolt 4

Ideal for creative professionals, the sleek Thunderbolt 4 Slim Hub can provide 40Gbps bandwidth for connecting external displays and high-speed peripherals while simultaneously delivering 60W of charging to the host device. It features three Thunderbolt 4 downstream ports that support daisy chaining up to six Thunderbolt devices to maximize your creative space. One USB 3.0 ports provide data transfer rate up to 5 Gbps. Allow you to connect keyboard, mouse, hard drive for data transfer (such as HuaWei/ Google Pixel/ iPad Pro).

Details:

THUNDERBOLT 4: Connect your USB-C laptop to the Thunderbolt 4 upstream port to get a powerful charge up to 60W, or connect mobile devices to the 3 other Thunderbolt 4 ports to get a 15W charge. The 3 Thunderbolt 4 downstream ports also support data transfer speeds of up to 40 Gbps—enough to transfer a 20GB file in just over 10 seconds.

PORTS EXPANSION: 3 x Thunderbolt 4 ports support speeds up to 40Gbps and 15W charging for phones and tablets. Also, 1x USB-A port up to 10Gbps and 1x upstream Thunderbolt 4 port up to 60W charging to the host device so you do not have to connect a power cable to your laptop. Automatically detects and adapts to your host device power requirements. (Max 60W)

COMPATIBILITY INFORMATION: Works with Windows 10 laptops equipped with a Thunderbolt 4 port (Intel Evo Platform), and MacBooks running macOS 11 (Big Sur) or later. Thunderbolt 4 dock supports 2x 4K screens at 60Hz, one 8K screen at 30Hz or 1x 6K on M1 Macs. Functionality limited on USB-C only systems. Thunderbolt 3 Windows systems not recommended.

DAISY CHAIN: Allows for up to 6 levels of Daisy-Chaining from the downstream Thunderbolt 4 ports, giving users more accessibility with what they can connect to the hub and maximizing creative space.

WHAT YOU GET: PowerExpand 5-in-1 Thunderbolt 4 Dock, 100W power adapter, power cord, Thunderbolt 4 cable, user guide, and friendly customer service.

Tech Specs:

COMPATIBLE DEVICES:
Designed for Thunderbolt 4 based PCs and Thunderbolt 4/3 based Macs utilizing MacOS 11 and later versions, Thunderbolt 4 Slim Hub supports 2x 4K screens at 60Hz, one 8K screen at 30Hz or 1x 6K on M1 Macs. Thunderbolt 3 Windows systems not recommended.

2023 M2 MacBook Pro/ Pro Max, 2022 MacBook Pro/M2/ Air M2, 2021 MacBook Pro 14-inch, 16-inch (M1 Pro/Pro Max), 2020 MacBook Pro/M1/ Air M1, 2019/2018/2017/2016 MacBook Pro, 2020/2018 MacBook Air, 2021 iMac M1, 2019/ 2017 iMac, iMac Pro, M2 Pro Mac Mini, Mac Mini M1/M2, 2022 iPad Air M1, 2022 iPad Air, M1 iPad Pro 2021, M1 2021 iPad Pro, 2020/2018 iPad Pro, Mac Studio, Mac Pro, 2020 iPad Air and other laptops supporting Type-C, Thunderbolt 4 or USB4 interface.

SPEED: Thunderbolt 4 Upstream Port - PD 60W
USB 3.2 Gen 2 Data Port - up to 10Gbps
3x Thunderbolt 4 Downstream Ports 40 Gbps, 15W
(2x) 4K at 60Hz or (1x) 8K at 30Hz or (1x) 6K on Mac

MODEL NO: HS-T404
