AJA T-TAP™

  • Category: Audio/Video
AJA Video Systems
Operating System:
MacOS
Operating System:
Windows
Self or Bus Powered:
Bus Powered
Number of Thunderbolt Ports:
1
Thunderbolt Version:
Thunderbolt

AJA's T-TAP™ provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt™ to deliver high-quality 10-bit SD, HD and 2K video and embedded audio output from any compatible Mac. T-TAP features HD/SD SDI and HDMI outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors. Both HDMI and SDI are active at all times, so you can simultaneously work with professional and consumer gear. Based on the same architecture as AJA's Io XT Thunderbolt™ I/O, T-TAP offers full 10-bit broadcast-quality output. 10-bit quality is far superior to DisplayPort adapters that only support 8-bit and are not true video output solutions for professional applications.

It may be compact, but T-TAP doesn't compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1 - or even 7.1 mixes.

Simple to setup and use, T-TAP connects to your Mac or Windows PC via the blazing-fast Thunderbolt™ connection which provides the bandwidth necessary for full broadcast-quality video and audio output. Because T-TAP is powered via the Thunderbolt™ connection, there's no need for an additional power supply, minimizing cabling and maximizing portability.

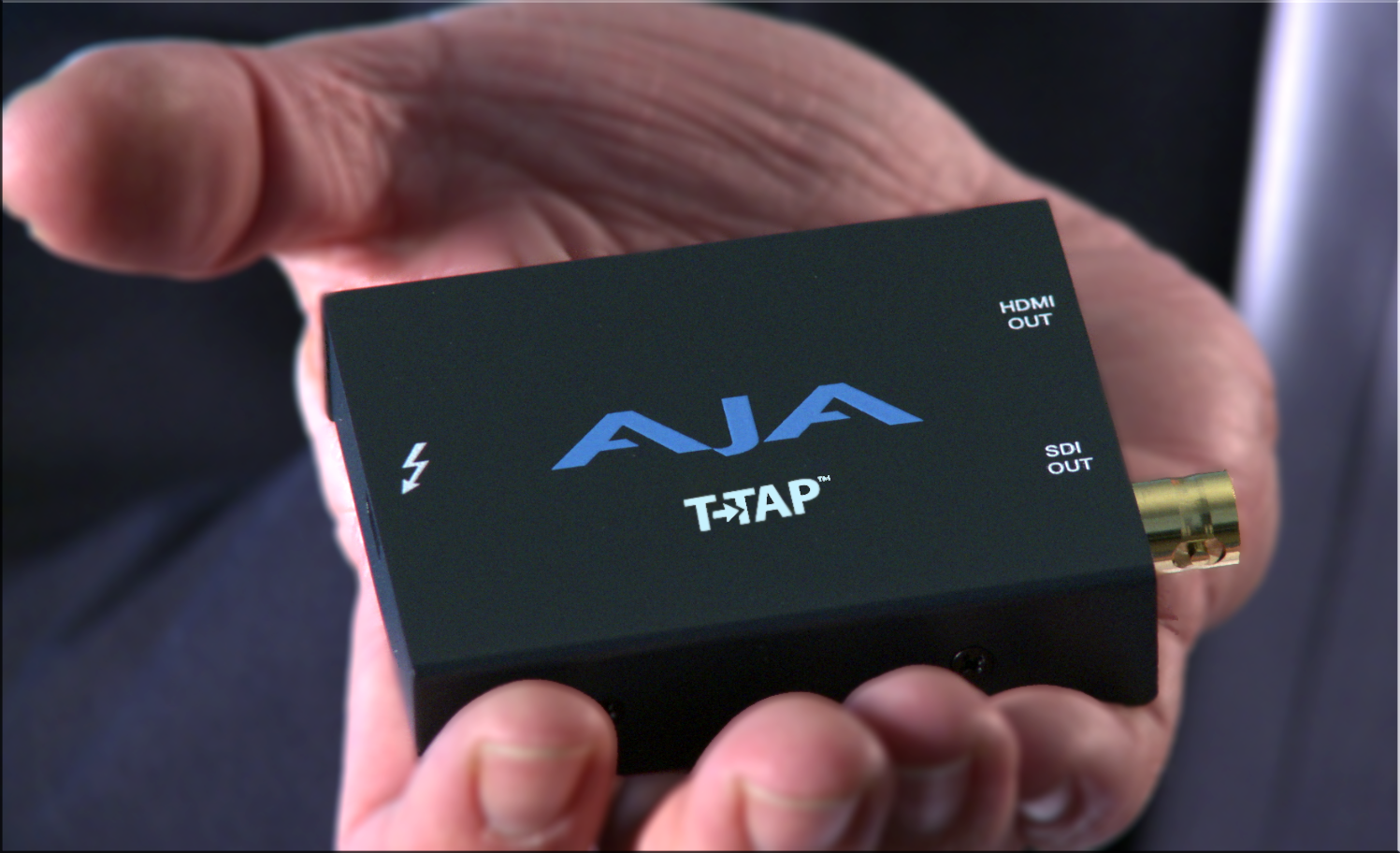

Smaller than a deck of playing cards, T-TAP offers broadcast-quality performance you can fit in the palm of your hand.
